ZYWL-6000Y

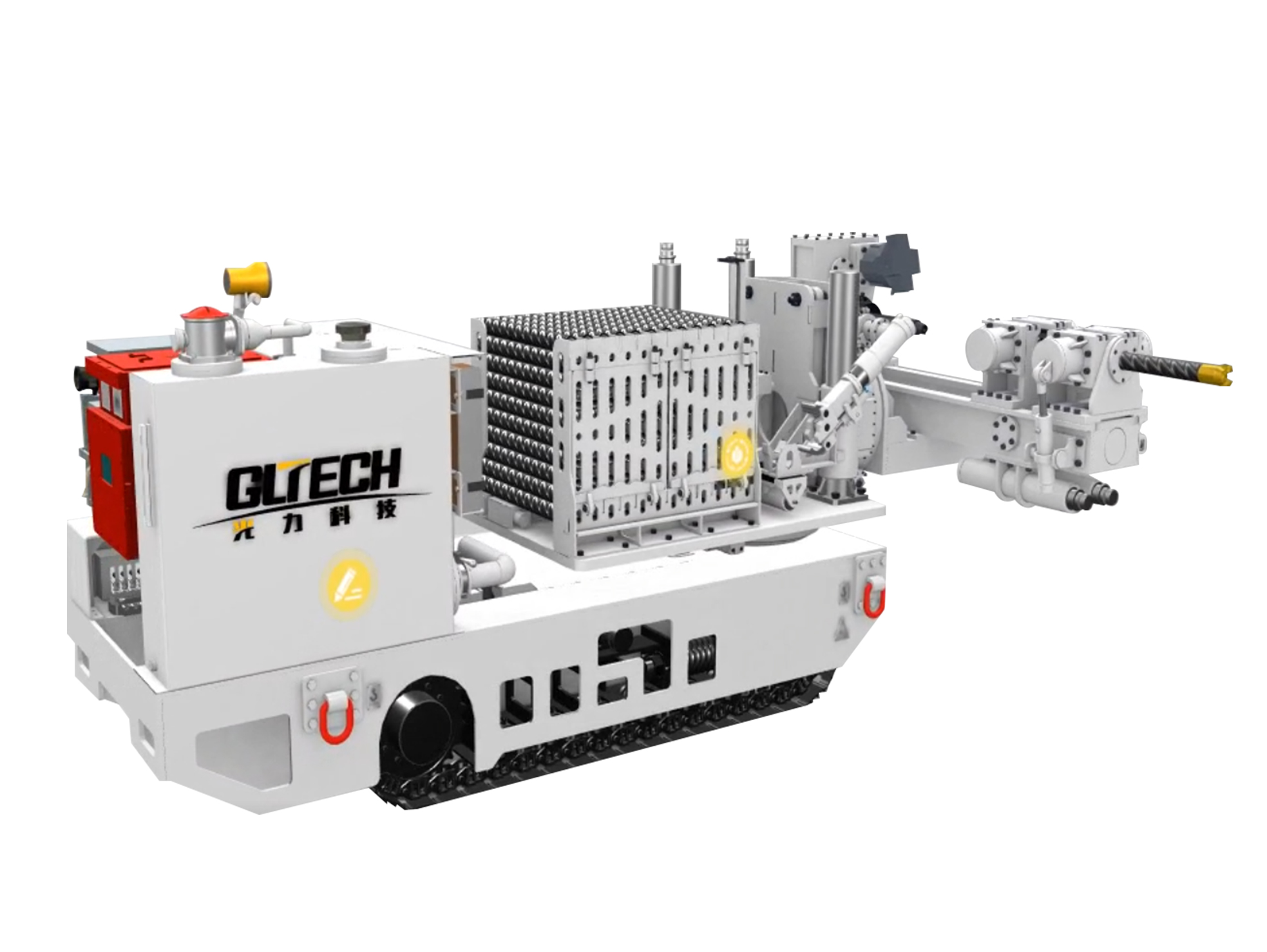

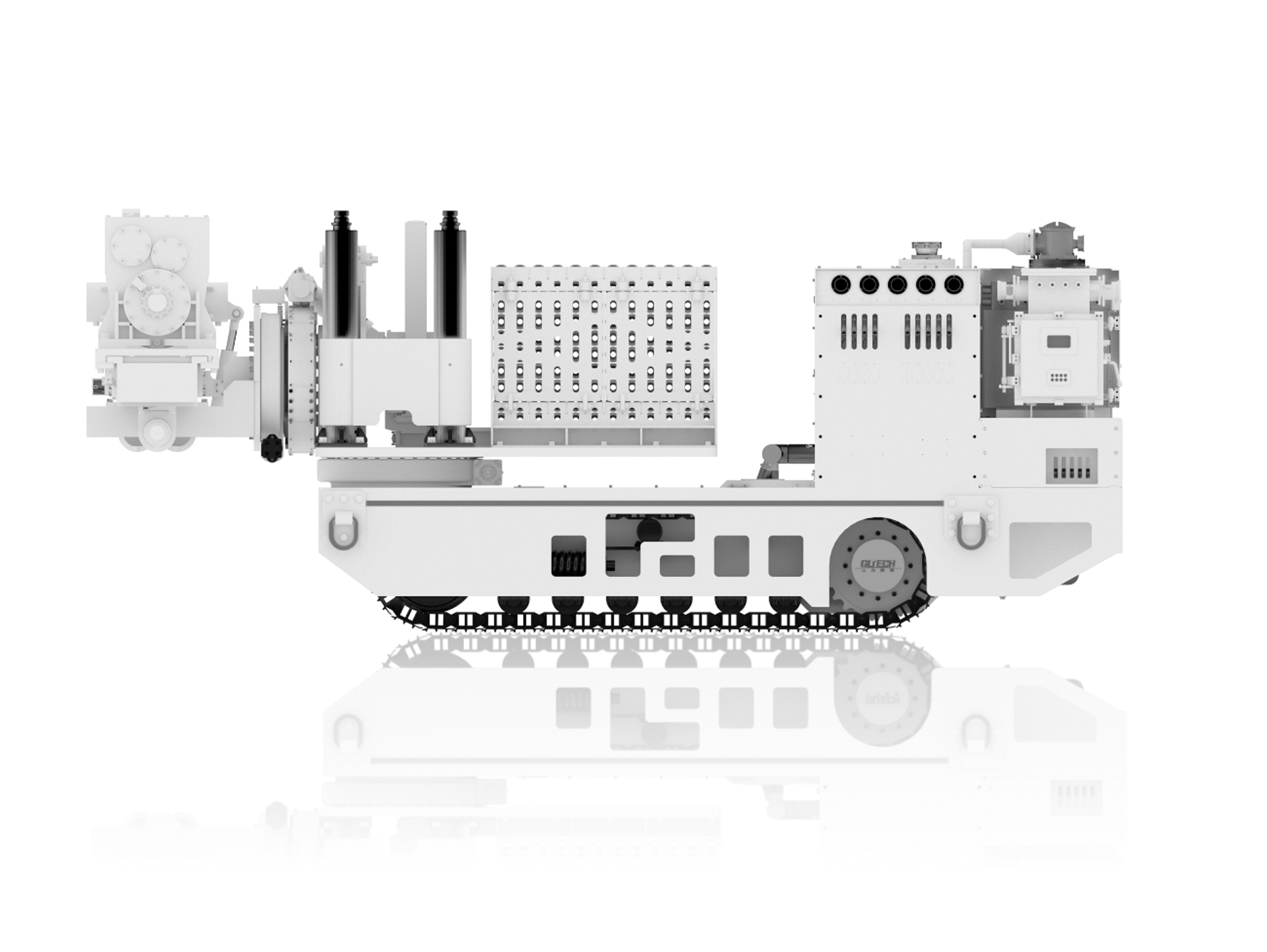

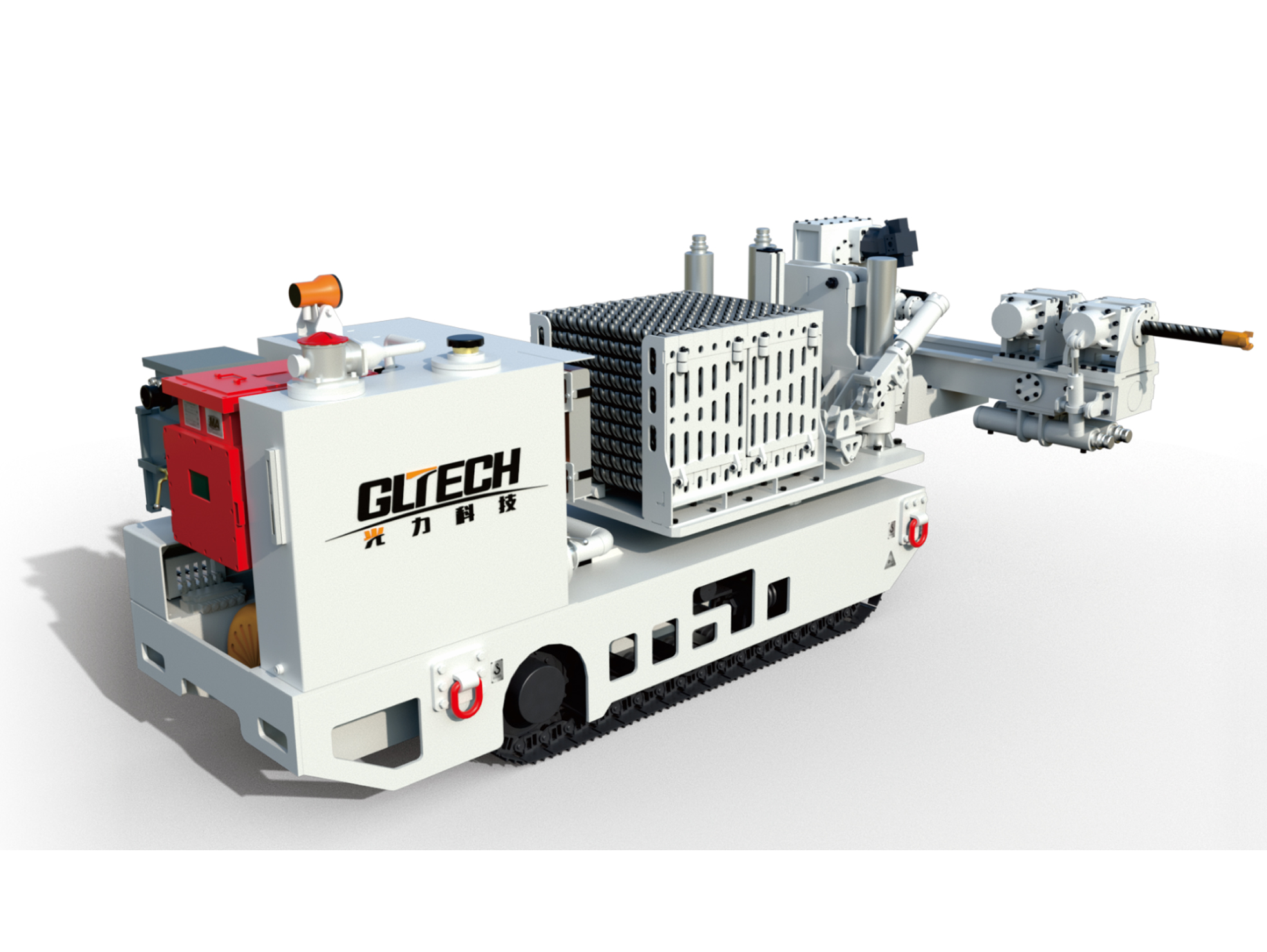

ZYWL-6000Y Crawler-type full hydraulic drilling rig for coal mine

Description

ZYWL-6000Y crawler-type full hydraulic drilling rig for coal mine is a fully automatic drilling rig independently developed by GLTECH. It is mainly used for safe construction drilling and geological exploration drilling such as underground gas drainage, water hazard prevention, outburst prevention, etc. in coal mines.

Description

ZYWL-6000Y crawler-type full hydraulic drilling rig for coal mine is a fully automatic drilling rig independently developed by GLTECH. It is mainly used for safe construction drilling and geological exploration drilling such as underground gas drainage, water hazard prevention, outburst prevention, etc. in coal mines.

The drilling rig system consists of the main body of the drilling rig, remote controller, wireless substation, mobile phone APP, and host computer management software. Through the drilling management software of the host computer, the automatic design and task management of drilling can be achieved. An integrated video system is capable of remote monitoring of the whole process. The model can be equipped with a drilling tracker and a single-hole drainage metering device. Through the host computer analysis software, the system has functions of automatic mapping of drilling trajectories, quality evaluation, analysis of drainage blank zone, and intelligent hole filling design.

Features

  • It has automatic collection and monitoring of drilling parameters and equipment operating parameters, and has the functions of local remote operation and network remote monitoring.
  • Different drilling process parameters are independently calibrated according to the change of geological strata.
  • With system-level fault auxiliary analysis and maintenance reminder functions
  • Rich operation modes:
    • Full-automatic mode achieves automatic loading and unloading of drill pipes, adaptively optimizes the drilling strategy according to the load situation, realizes high-efficiency fully automatic drilling, greatly reduces on-site operators, and reduces the labor intensity of operators
    • In the semi-automatic mode, through manual operation of drilling parameters, self-memory and learning of manual operation habits, quickly adapt to the geological conditions of the new environment
    • Manual mode, manual intervention on the operation, high flexibility of control mode

Operation Conditions

  • ZYWL-6000Y crawler-type full hydraulic drilling rig for coal mine is suitable for explosive gas environment which is non-corrosive and does not damage electrical insulation.
  • Altitude: ≤ 2000m
  • Ambient Temp:-5°C〜+40°C
    RH:≤95%
  • Applicable f value: various coal rock formations less than 10

Technical Advantage

  • Safe and efficient automatic operation

It can be fully automatic, semi-automatic, and manually controlled. The control methods are flexible and diverse, which can effectively reduce drilling operators and labor intensity. The remote-control distance is 50 meters, and the operators are far away from dangerous environments. Adaptive drilling intelligently optimizes the rotary torque, rotary speed, working speed, and pressure according to the load. The equipment intelligently predicts drilling accidents such as drilling pressure and stalling, reduces accidents of broken rods and buried drills, and reduces economic losses caused by accidents at the bottom of the hole loss.

  • Drill box capacity

The drill pipe box is equipped with 120 standard drill pipes of Ø73-800mm. A single box can support fully automatic operation with a hole depth of 96m, which meets the construction of most layer-penetrating drilling holes. Extra drill pipes can be added to the drill pipe box for deeper drilling requirements.

  • Wide range of drilling angles

The drilling rig can carry out drilling construction coverage with a horizontal orientation of 180 and an inclination angle of -45°-90°, and the feed mechanism can be raised and lowered to meet the construction requirements of various angles and heights, and an inclination sensor is used to assist precise inclination positioning.

  • Remote control

The operating status of the equipment and drilling parameters can be monitored remotely, and it has the function of remote start and stop to ensure the safety of construction personnel.

  • Safety warning and system failure prompt function

According to the design parameters of the borehole, the pre-set coal-rock boundary can be predicted in advance, prompting to prepare before coal penetration, and preventing gas outbursts. The equipment has the functions of system-level fault self-inspection, pre-warning of a stuck drill, and automatic entry into the escape mode. The equipment management function provides operation, maintenance, and maintenance reminders to prevent equipment from running out of warranty, reduce equipment accidents, and improve equipment life.

  • Strong scalability

①It is used in conjunction with the drilling tracker to evaluate the drilling quality; it supports the import of track data into the drilling software of the host computer and realizes the automatic tracking of the track and the instant update of the drilling engineering drawing

② Through the drilling management software of the host computer, the automatic design and task management of drilling are realized

③The drilling video system realizes the remote monitoring of the whole process

④ The operating parameters of the equipment can be monitored remotely

⑤Associated with the supporting single-hole drainage metering device, through the analysis software of the host computer, the analysis of the blank zone of drainage and the design of intelligent hole filling can be carried out, providing a whole-process and full-cycle intelligent management platform for coal mine gas control.

  • Intelligent management

The drilling rig has a data black box function, which can record equipment operating parameters and drilling parameters in real time, dynamically optimize drilling parameters, and realize intelligent, safe and efficient drilling through double optimization of efficiency and power consumption. It is a low-carbon, environmentally friendly green drilling rig.

  • Industrial application

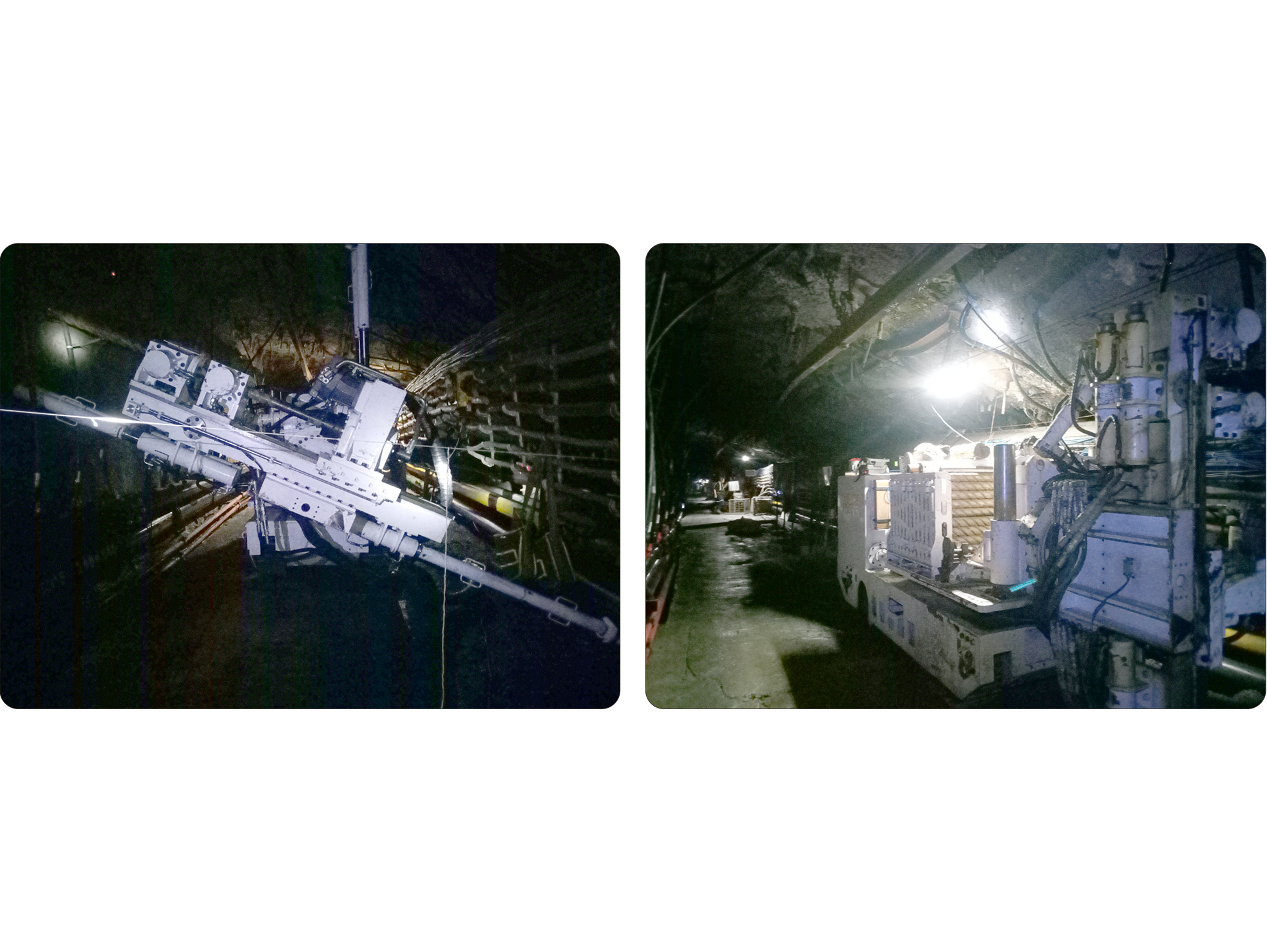

The ZYWL-6000Y crawler-type full hydraulic drilling rig for coal mines was carried out in September 2022 in a mine in Henan for industrial experiments. The drilling volume of 2,253 meters has been completed, and the performance of the whole machine is stable.

Technical Specifications

Item Unit Power head type
Maximum drilling depth m 600
Drilling diameter mm 94/113/133
Final hole diameter mm 133/153
Drill rod diameter mm 73/89
Drilling inclination -45°-90°
Rod box capacity root 120(Ø73×800)
Rated output speed r/min 70-270
Rated output torque N.m 6000〜1200
Motor required flow L/min 145
Feed force kN 140
Pulling force kN 210
Anchoring force KN 725
No-load propulsion speed m/min 0〜12.7
No-load pulling speed m/min 0〜8.5
Feed stroke mm 980
Remote control distance m ≤50
Normal remote control working distance m ≤20
Pumping Station Motor Power kW 75
Motor model / YBK3-280S-4
Effective tank capacity L 300
Drive type / Crawler
Walking structure Walking speed m/min 35
Climbing ability   20
Track shoe width mm 260
Working flow L/min 145
Control Panel System set pressure MPa 27
Propulsion pressure MPa 17
Anchoring pressure MPa 125
Rotation pressure (reverse) MPa 27
Rotation pressure (forward) MPa 27
Travel mechanism working pressure MPa 27
Noise dB(A) w95
Main engine dimensions (length x width x height) mm 4777x2369x1950
Main engine weight kg 9980
