KJ428

KJ428 Coal mine fire hazard monitoring and preventive warning system

Description

The KJ428 monitoring system is based on the principle of laser spectrum gas detection and DTS optical fiber technology, providing coal mines with a comprehensive solution for fire hazard monitoring, preventive warning, automated intervention, and remote supervision(DCS).

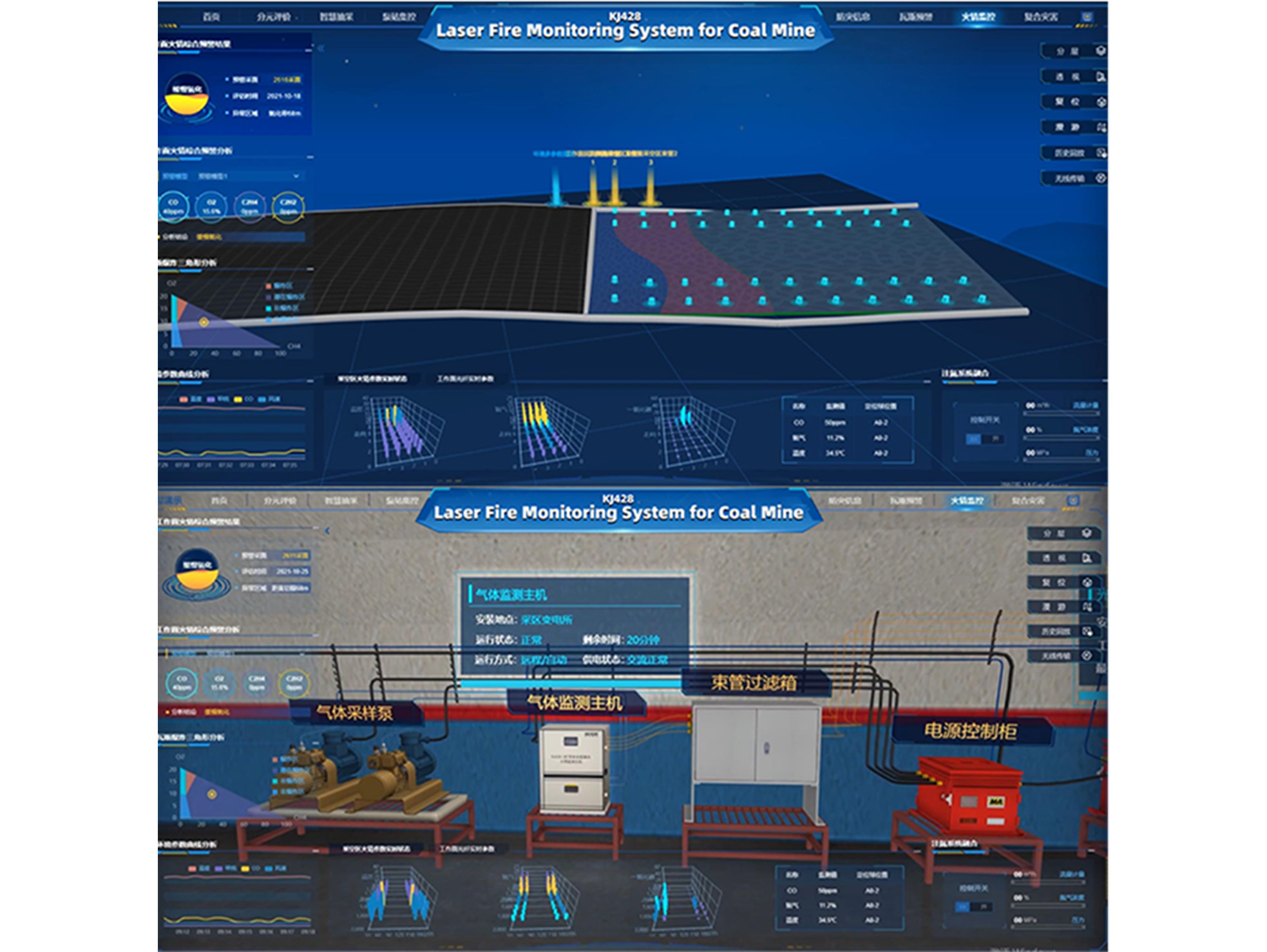

The system provides accurate monitoring, data analysis, and preventive warning of spontaneous combustion in goaf and confined areas, as well as fire hazard parameters in areas such as electrical equipment and belt conveyors. KJ428 can also perform fire prevention and extinguishing intervention control based on the analysis and processing results. The system also supports APP software function interface display, which is convenient for inspectors to monitor various gas indicators and tube bundle status in real-time.

Features

  • Multi-gas monitoring capability, immune to interference
  • Fire development tendency predication
  • Centralized monitoring and control
  • Automated intervention of fire suppression system
  • Remote supervision compatibility (Can be linked directly to local fire department)

Technical Parameter

KJ428

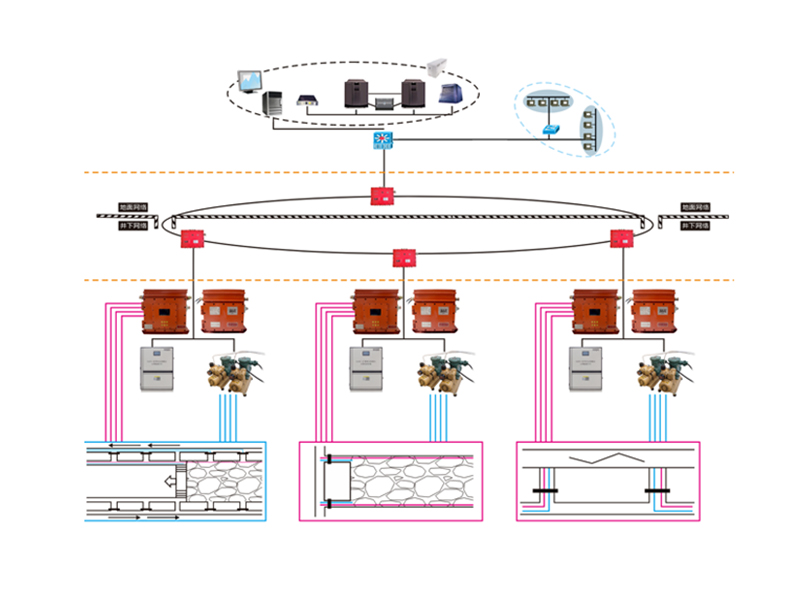

Structure Equipment Functionality Monitoring Regions
Underground Fire Monitoring Equipment TDLAS gas parameter analysis host DTS(Distributed temperature sensing) host Pump Power supply and control equipment Monitors concentration of CH4,CO,CO2,O2,C2H2,C2H4 , C2H6,N2,H2, and TEMP. Goaf/Gob Return airway corner Confined space
Transmission

network system

Transmission line (optical fiber) Transmission equipment (ring switch) Carrying communication and data transmission between underground equipment and ground monitoring room

N/A

Ground-level server system

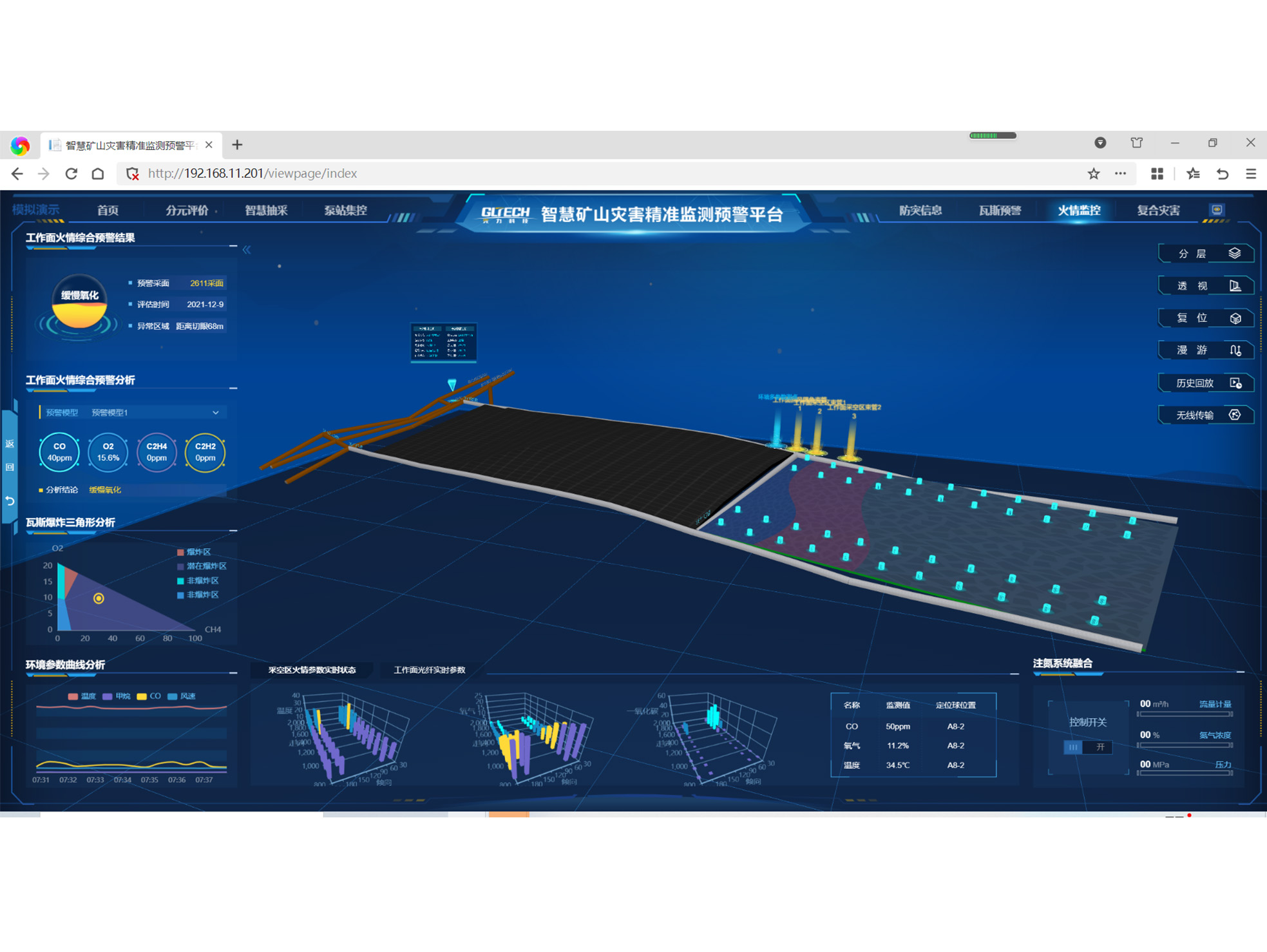

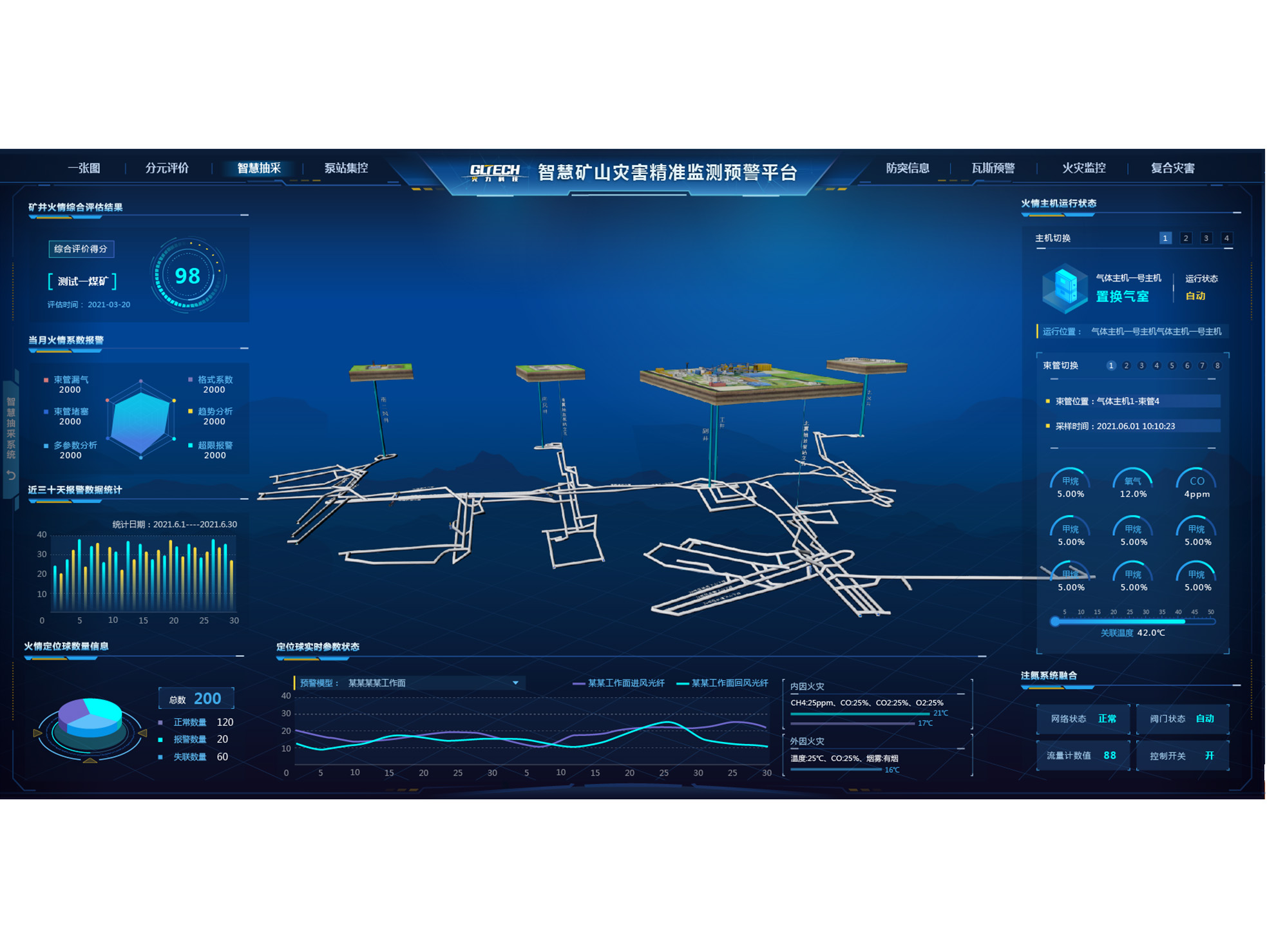

Multi-purpose server Monitoring host Network switch Software platform 3D visualized real-time display, data storage, analysis, evaluation, trend prediction and alarm

N/A
