CGMC-2

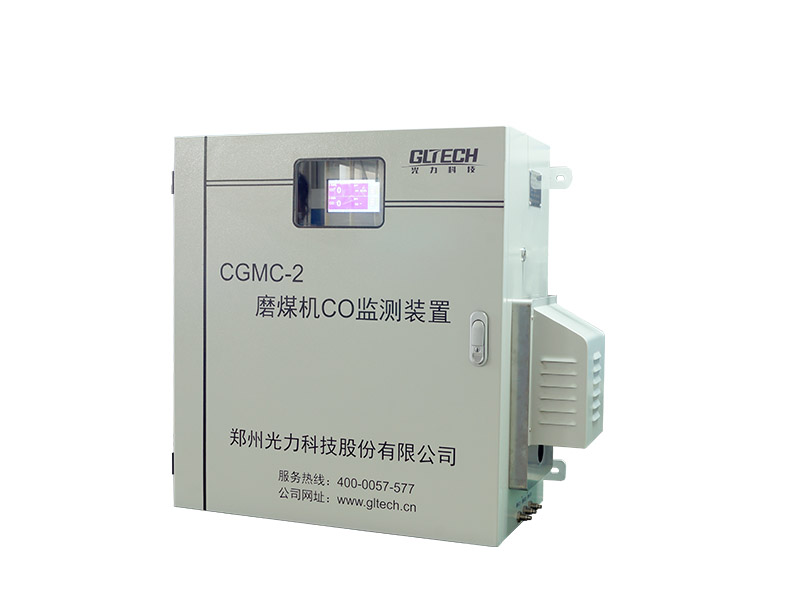

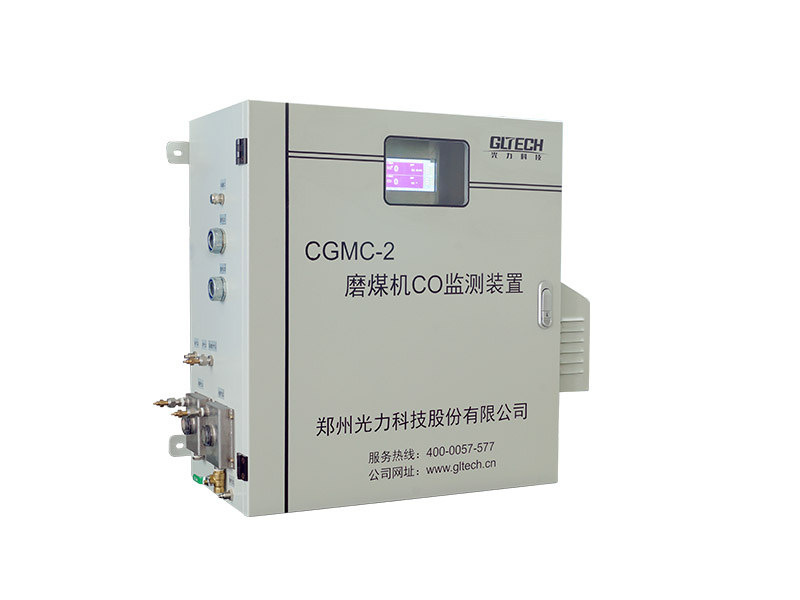

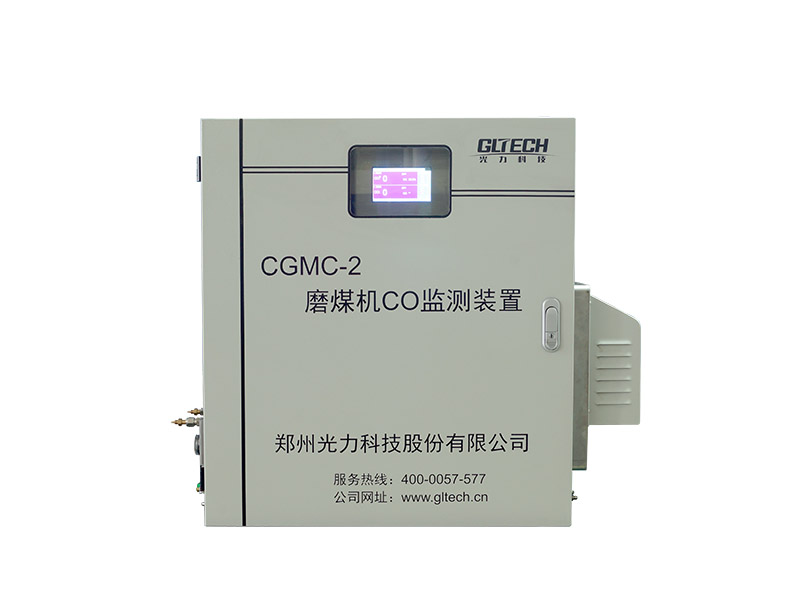

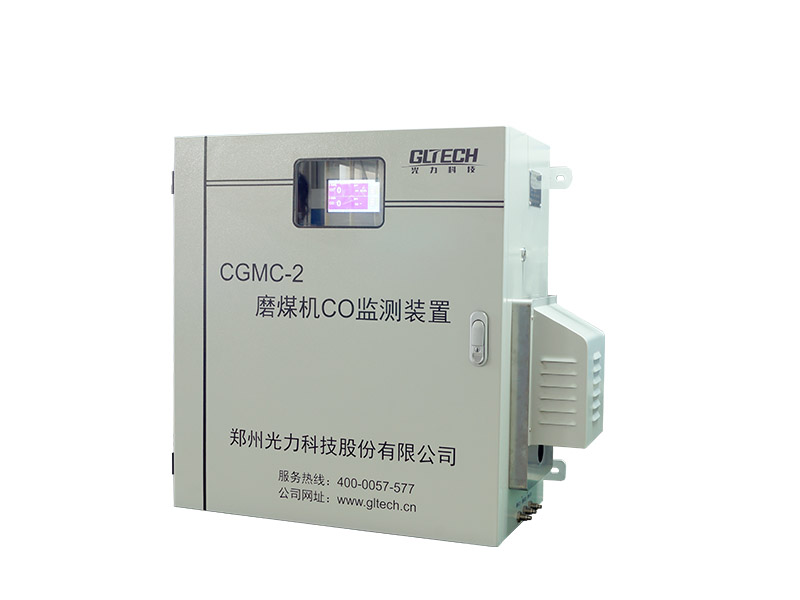

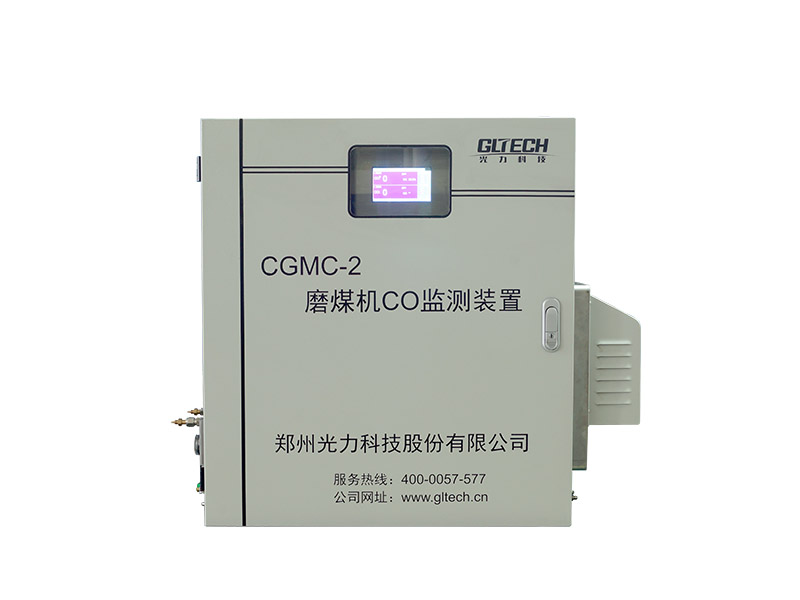

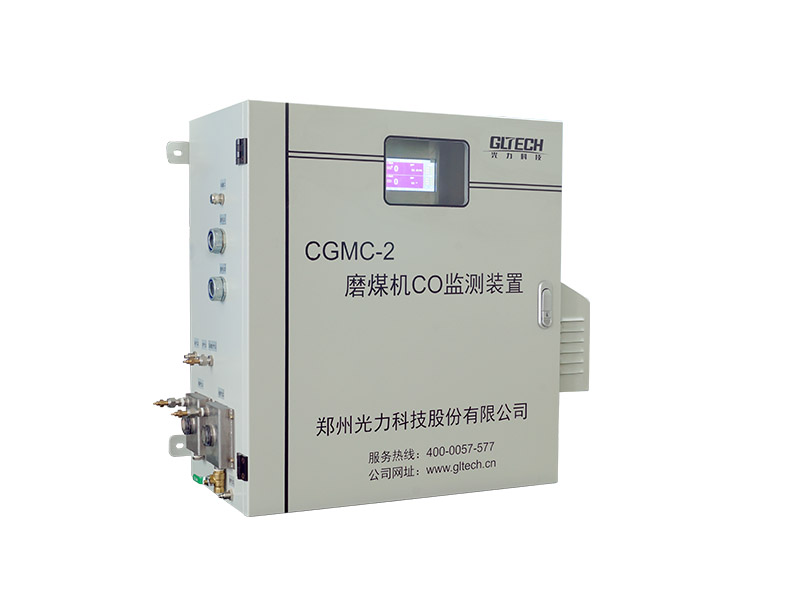

CGMC-2 CO Monitor for Coal Mills

Product description

The Coal Mill CO Monitoring System monitors the CO gas content in the coal mill and coal powder silo in real-time, enabling early warning of the risk of coal powder ignition or combustion.

Message Chat Online

Features

  • Stable and reliable, minimal maintenance
  • The high-precision filter element plus automatic purging prevent pollution and clogging
  • Regular automatic cleaning and calibration, no manual work required
  • Flexible structure and accurate measurements
  • Support one-to-two cycling measurements or one-to-one connection with real-time measurements
  • Integrated gas sample pretreatment system to generate accurate results

Technical Parameter

  1. Sampling method: Micro pressure circulated sampling
  2. Measuring range: (0~1500) ppm (other range customizable)
  3. Resolution: 1ppm
  4. Measurement deviation: (0~100) ppm,  ≤±4 ppm; (100~1500) ppm, ≤±5% of true value
  5. Filtering accuracy: 0.1 micrometer
  6. Power supply: 220 (1±10%) V AC/50Hz
  7. Analog output: (4~20) mA
  8. Alarm type: SPST
