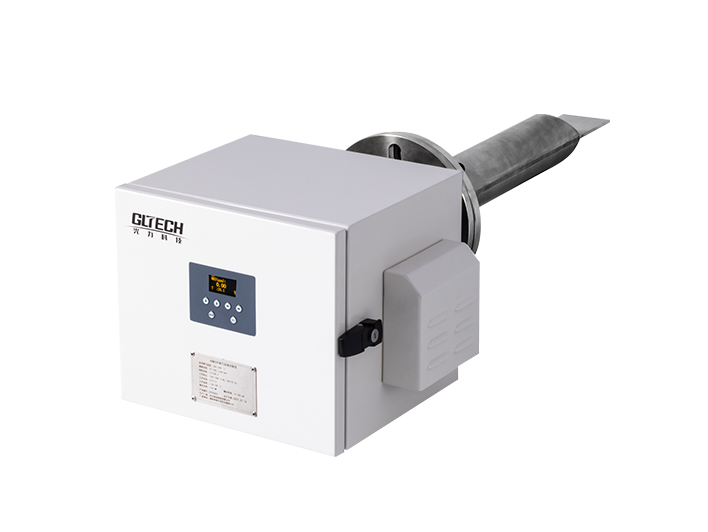

Specialized in ammonia emission monitoring for environmental protection. It is used for ammonia emission removal processes, installed at the main exhaust port, and provides real-time monitoring and early warning of ammonia emissions.

• Measurement Method:Integrated structure, original position closed-body measurement
• Measurement Range:0-20 μmol/mol
• Resolution:01 μmol/mol
• Linear Deviation:≤ ±1% F.S.
• Display Mode:OLED display, Chinese/English menu
• Signal Output:2 channels of 4-20mA analog signal, 1 channel of RS485 digital communication

• Integrated Structure / Original Position Closed-body Measurement
• Laser transmitter and receiver are integrated in one structure to achieve an integrated design.
• The measurement optical path is fully enclosed to ensure stability.
• High dust-proof and anti-interference capabilities ensure accurate measurement even in harsh environments.

NO1: Accurate Measurement Data and Real-time Accuracy

• The original position of the flue is measured to ensure the accuracy of measurement and real-time data.
• Laser light source is not affected by dust, ensuring long optical path and achieving ppb level sensitivity.

NO2: Simple Device Structure, Low Maintenance Effort

• Single-probe plug-in design, no gas path and simple disassembly.
• No consumables for the light source, basic maintenance-free.
• Can detect various gases, long service life.

NO3: Expandable to Establish Ammonia Emission Monitoring Platform and Interact with On-site Platform

• Complies with HJ212-2017 communication protocol, interacts with on-site monitoring platform.
• Can be expanded to establish an ammonia emission monitoring platform, providing real-time monitoring and early warning reports for enterprises.
