GL-9411

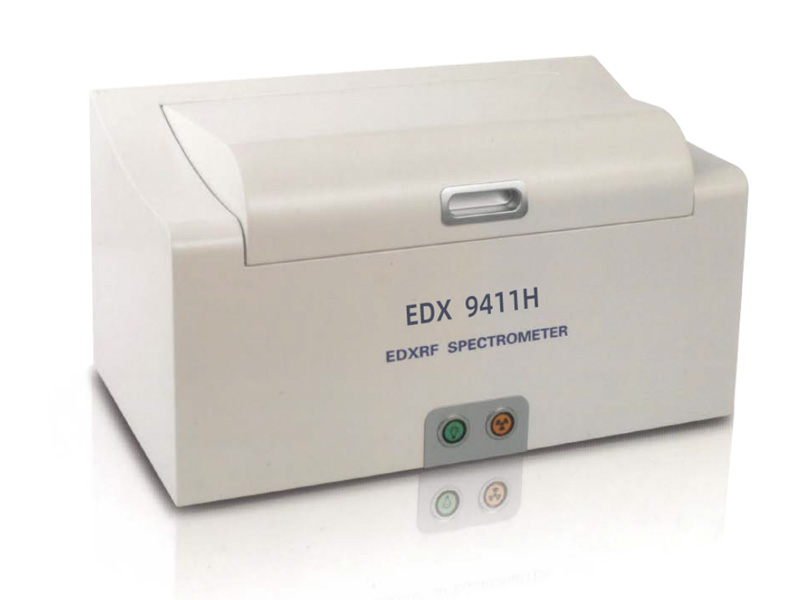

GL-9411 Metal spectrometer analyzer

Product description

GLTech metal spectrometer xrf analyzer application fields: alloy composition, precious metal analysis, RoHS, halogen-free, Toy Directive, plating thickness measurement.

Product description

GLTech metal spectrometer xrf analyzer application fields: alloy composition, precious metal analysis, RoHS, halogen-free, Toy Directive, plating thickness measurement.

  • Halogen-free Directive testing
  • Alloy analysis range (especially light elements)

Composition analysis and grade determination of aluminum alloy Composition analysis and grade determination of copper alloy Composition analysis and grade determination of stainless steelComposition analysis alloy steel, cast iron and pig iron

  • analysis of plating thickness

Plating component analysis

Plating solution environmental analysis

  • Packaging Directive testing (94/62/EC)Cd+Pb+Hg+Cr 6+<100
  • Toy Directive testing standards EN71-3

Features

  • Adopt imported electric cooling Silicon Drift Detector (SDD), with a crystal area of 25mm , a higher count rate, a2better resolution and a lower instrument detection limit;
  • Equipped with an efficient vacuum test system, which meets vacuum test requirements in 5 seconds, with a light element detection range extended to Na (sodium) element;
  • The instrument has an overall streamlined design, in line with ergonomics, and looks elegant, with an overall cooling system as the ray source effectively extending the service life of X-ray tube;
  • The degree of vacuum and the working parameters of the instrument are subject to a whole-process monitoring by software, allowing a safer and more stable use of instrument;
  • For RoHS, halogen-free and other environmental directives as well as the whole element detection analysis of alloy containing light elements, it is equipped with a vacuum + SDD detector testing system, increasing the testing range of elements.

Technical Specification

Elemental analysis range Na-U
Content detection range 1ppm-99.99%
Measurement time 60-200sec
Energy resolution 129±5eV
Pumping speed of vacuum system 1L/S(50Hz)
Instrument dimension 700x430x395mm
Dimension of

sample chamber

520x310x120mm(Non-vacuum)/Ф100x70mm(vacuum)
Instrument weight 54kg
