GFXW20/60(A)

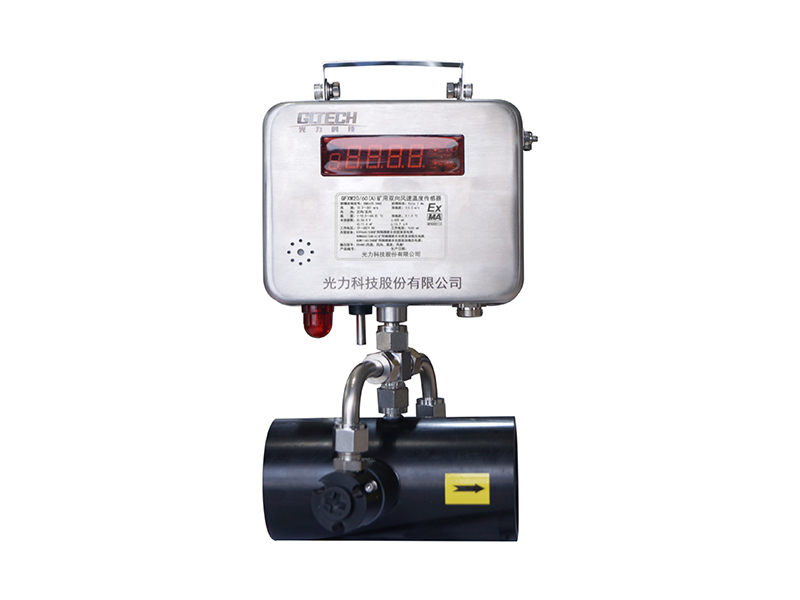

GFXW20/60(A) Intrinsically Mining Safe Bidirectional Ventilation Air Flow Rate and Temperature Sensor

Product Description

Intrinsically Mining Safe Bidirectional Ventilation Air Flow Rate and Temperature Sensor is used for monitoring air flow rate, direction, and temperature of underground coal mine ventilation system. The sensor can detect air flow rate from 0.2~20m/s and the direction of flow as well.

Product Description

GFXW20/60(A) GFXW20/60(A) Intrinsically Mining Safe Bidirectional Ventilation Air Flow Rate and Temperature Sensor is used for monitoring air flow rate, direction, and temperature of underground coal mine ventilation system. The sensor can detect air flow rate from 0.2~20m/s and the direction of flow as well.

Feature

  • Ultra-wide flow rate measure range

Able to measure flow rate from 0.2~20m/s covering ultra-low, low, and high flow rate with one sensor.

  • Multi-functional measure and alert

Able to measure flow rate, flow direction. Visual and sound alarm when sudden change in flow direction, reverse flow, and no flow, avoiding methane accumulation and outburst.

  • Reliable and robust

Integrated structure with no loose parts, avoiding interference caused by moisture, dust and mechanical failure.

Technical Specification

Working temperature 0~40℃
Relative humidity ≤98% @ 25 ℃
Ambient pressure 80~116 kPa
Application environment Coal mines or other explosive gas and dust environment
Air flow rate Temperature
Measuring range 0.2~20.0 m/s -10.0 ~ 60.0 ℃ + Forward
-Backward
Deviation ≤ ±0.2 m/s ≤ ±1.0 ℃ N/A
Power rating 18V DC @ ≤ 60mA
Voltage fluctuation allowance 9 ~ 24 V DC
Output signal RS485
Explosion-proof type Mining intrinsically safe (Ex-mark: Exia I Ma)
