GXG-209

GXG-209 Multi-gas Analyzer

Product description

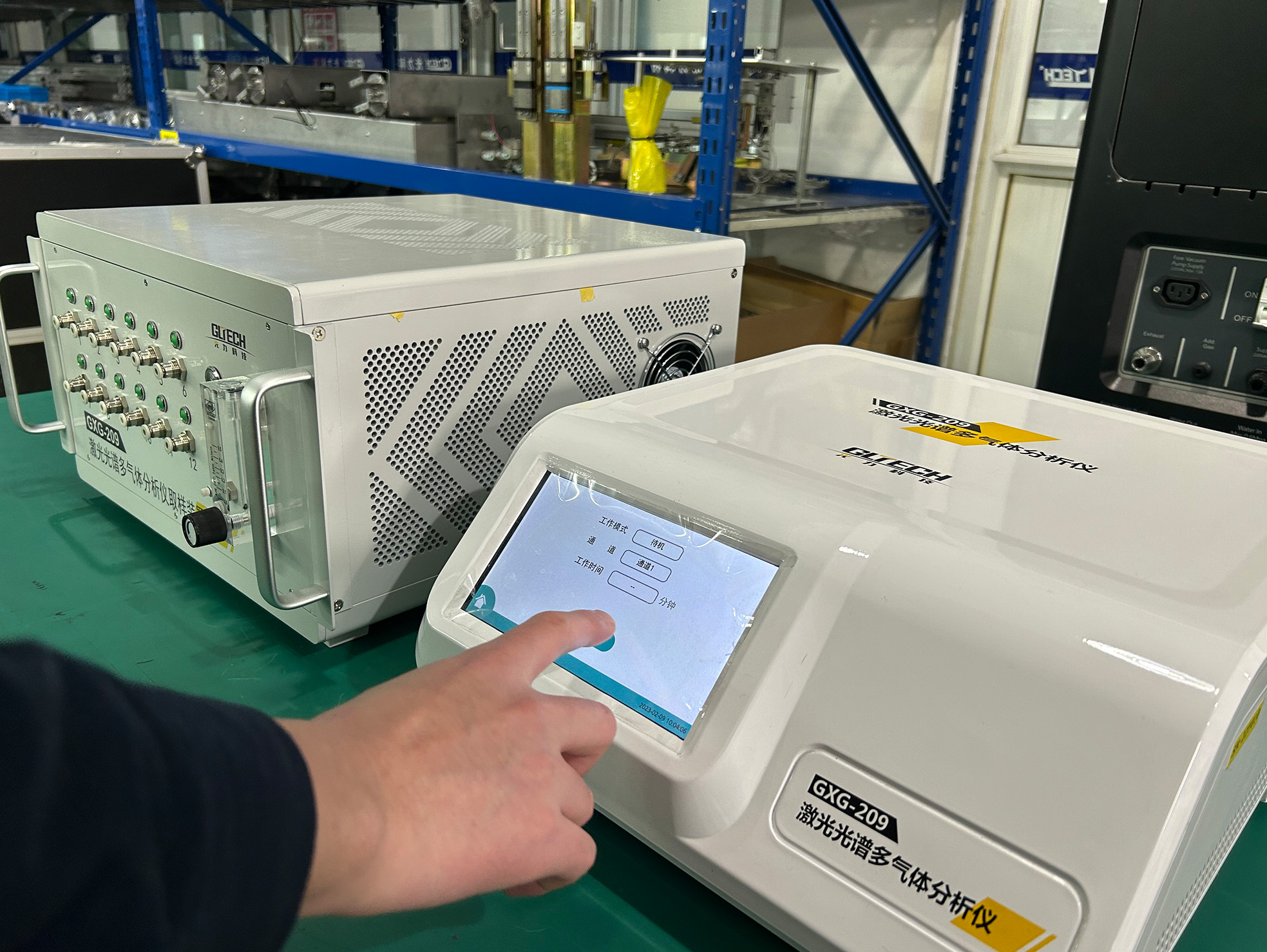

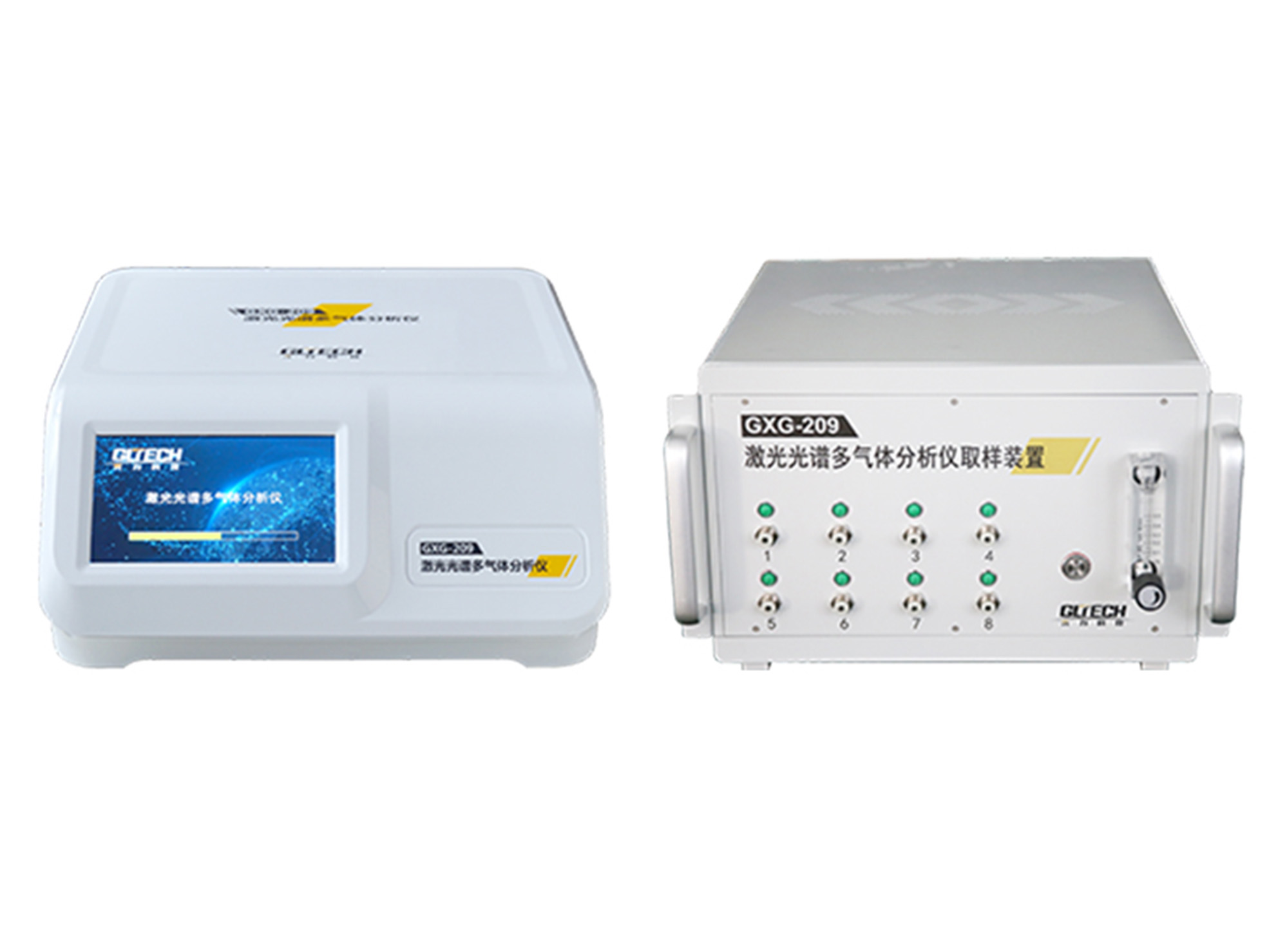

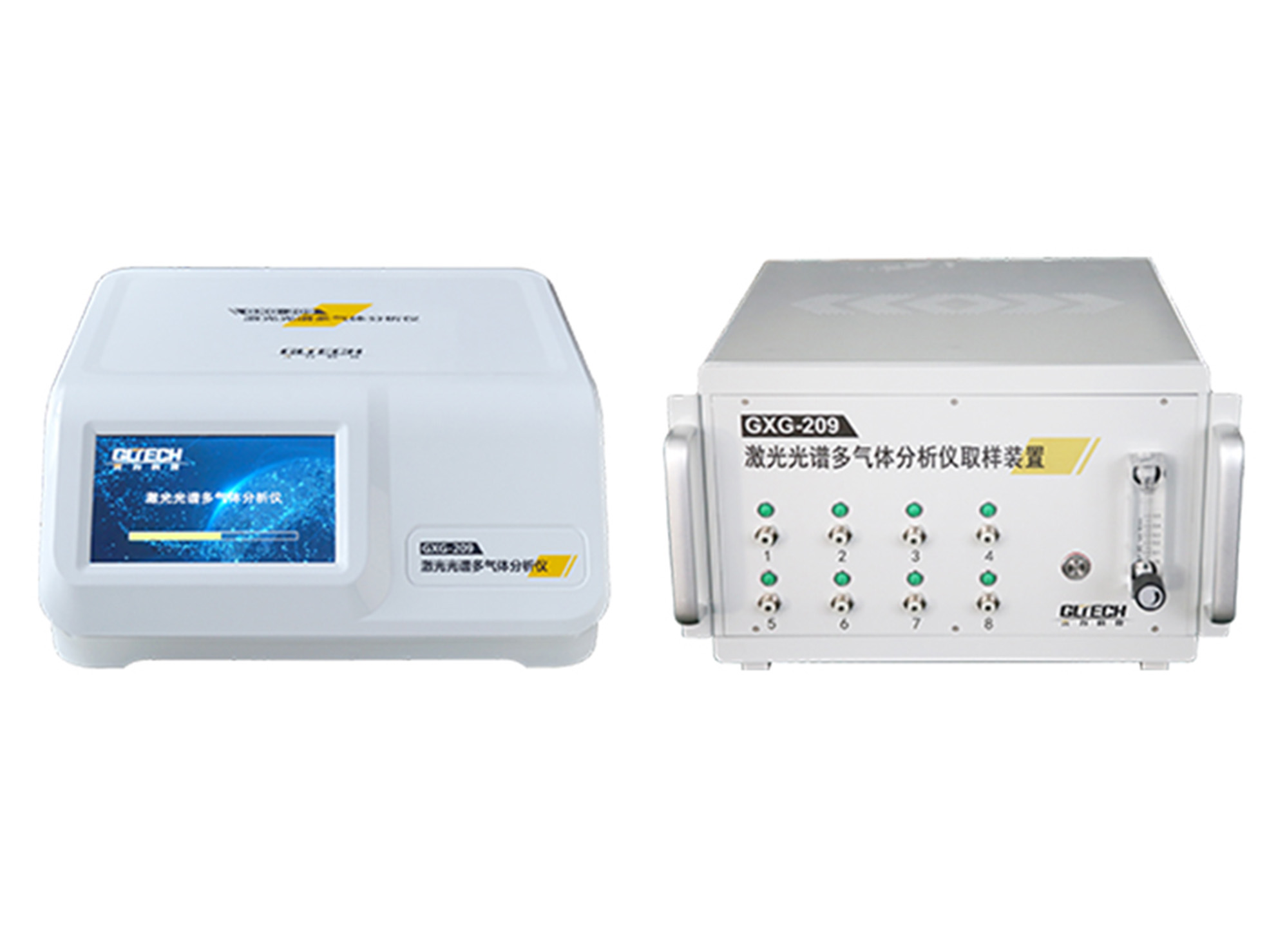

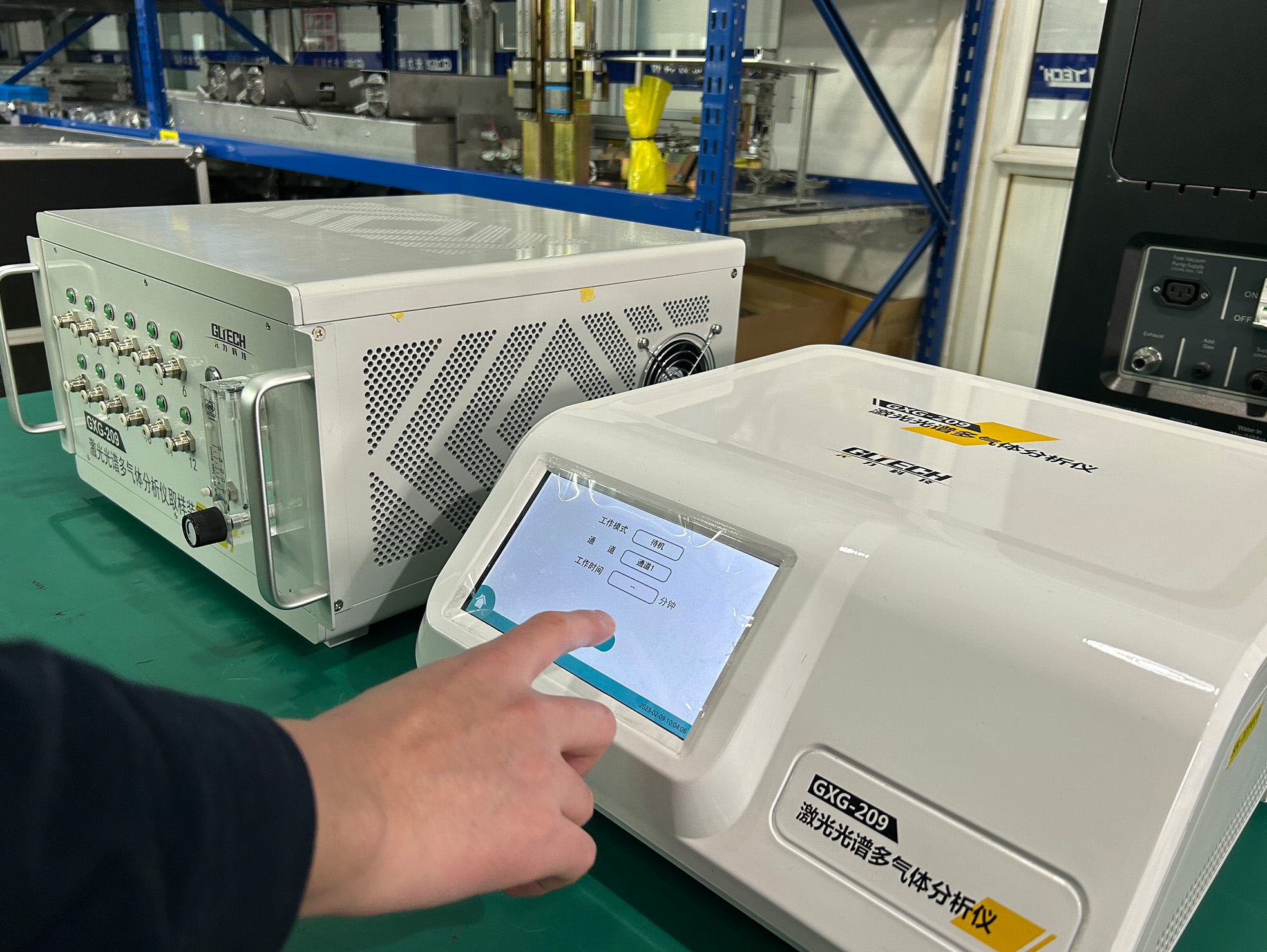

The GXG-209 laser spectrum multi-gas analyzer is a laboratory-grade equipment designed for multi-component gas measurement and analysis. This device is capable of simultaneously analyzing 9 different gases, including CH4, CO, CO2, C2H2, C2H4, C2H6, making it a comprehensive gas analyzer. It comes equipped with an automatic sampling system, enabling automated sample introduction and automatic gas switching. The equipment is easy to operate, provides efficient measurements, and allows data to be uploaded to PC software for analysis and report generation.

Message  Chat Online 

Related Products
Application

Features

Utilizes laser spectrum technology, capable of simultaneously detecting CH4, CO, CO2, C2H2, C2H4, C2H6, O2, H2, N2 gases.
Rapid gas concentration analysis (5-8 minutes) without the need for calibration gases or carrier gas, making it a viable alternative to gas chromatographs.
Automatic zero-point calibration and self-diagnostic functions.
Equipped with an automatic gas path switching device, enabling fully automated sample injection, analysis, data storage, and data uploading.
Offers trend analysis and over-limit alarm functions, supporting historical data queries, report exporting, and printing.

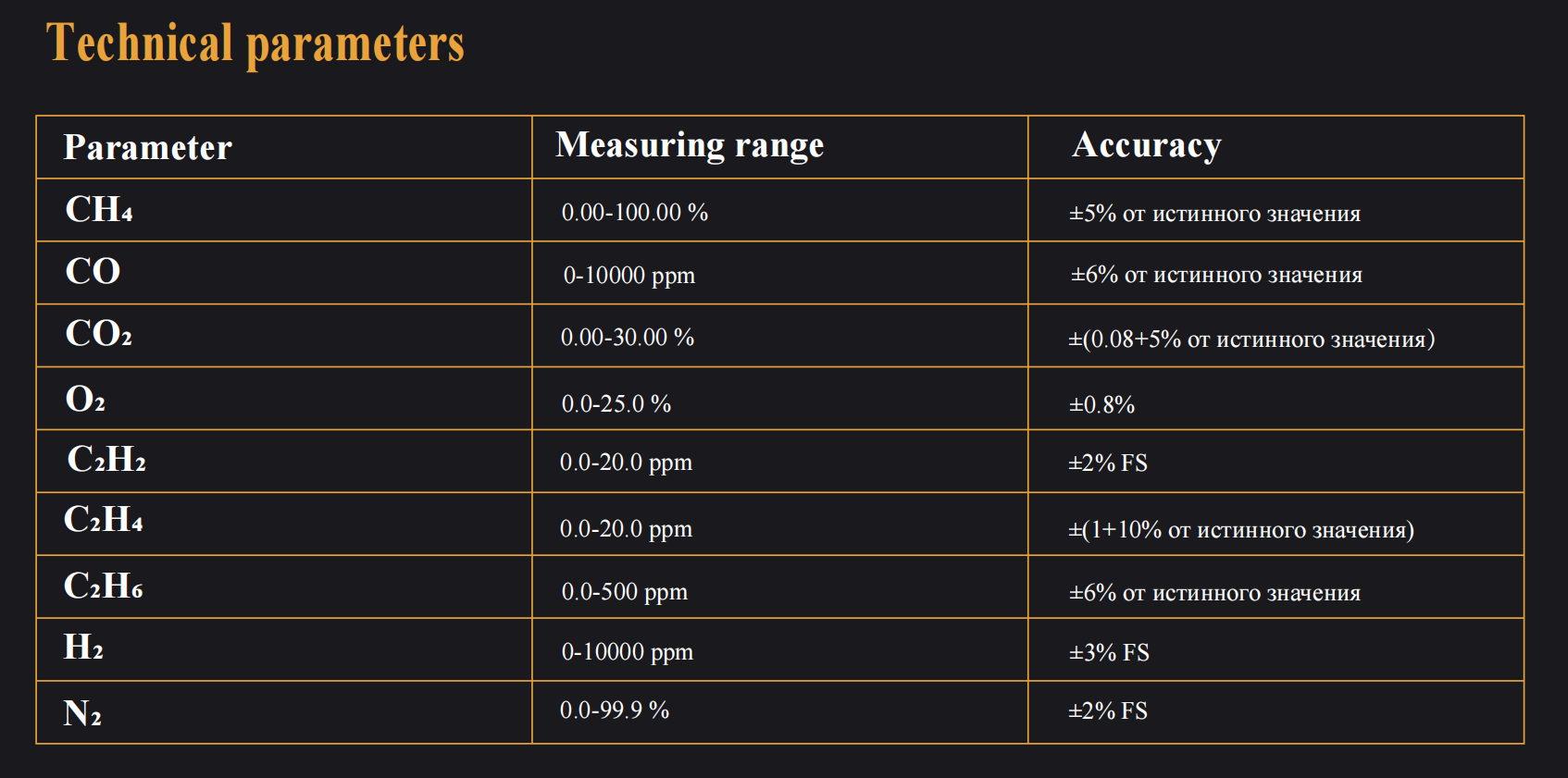

Technical parameters
