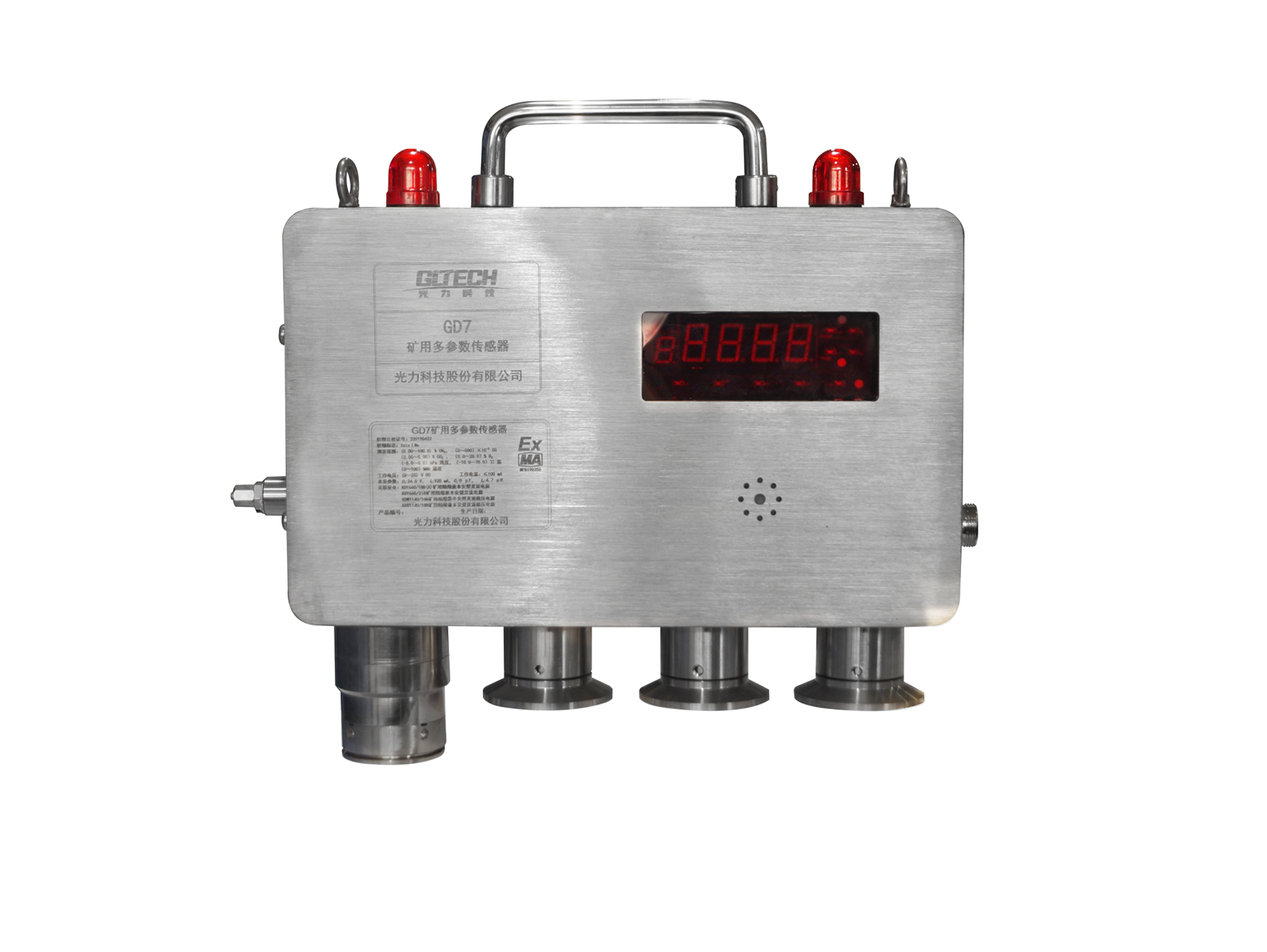

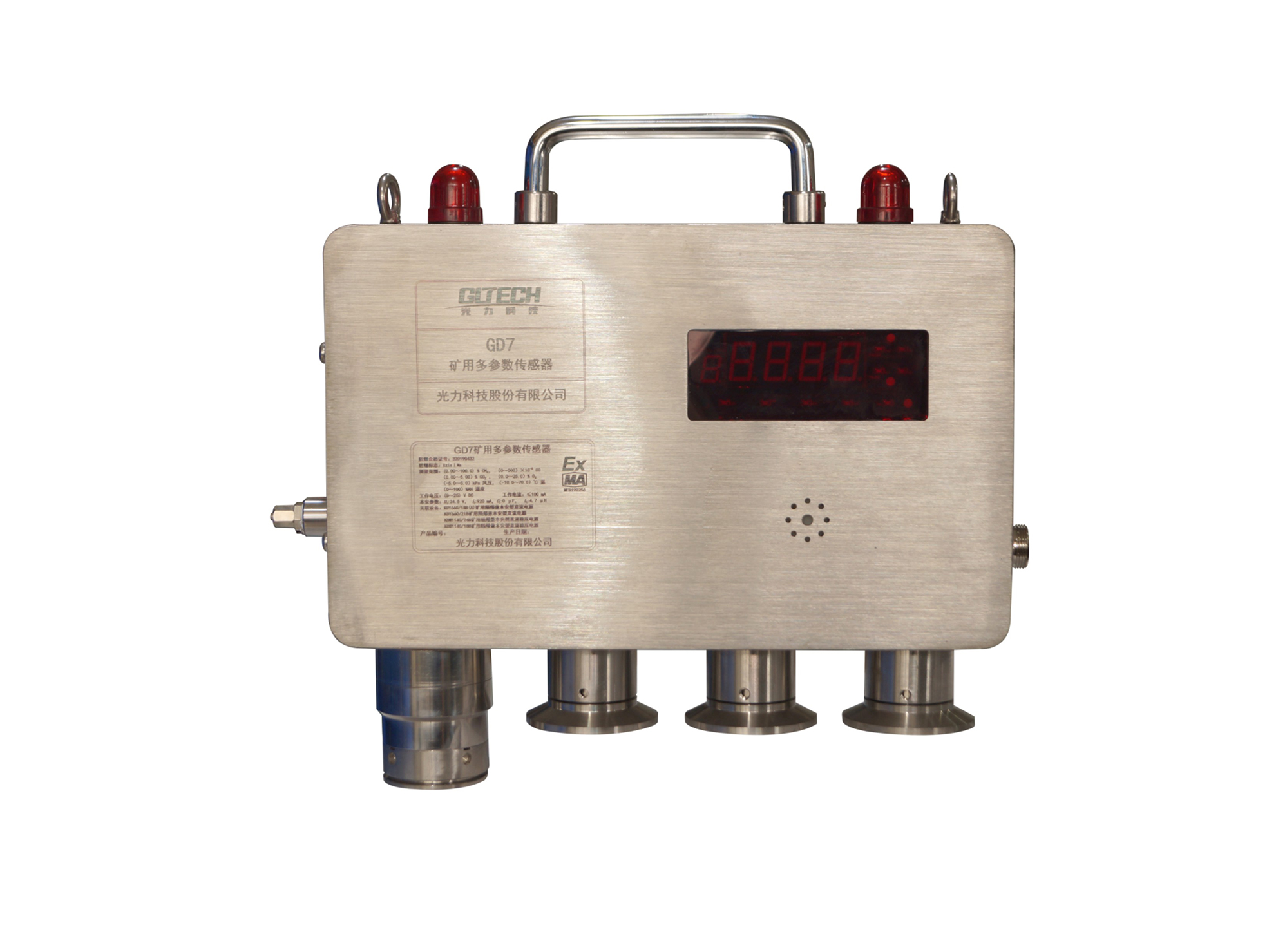

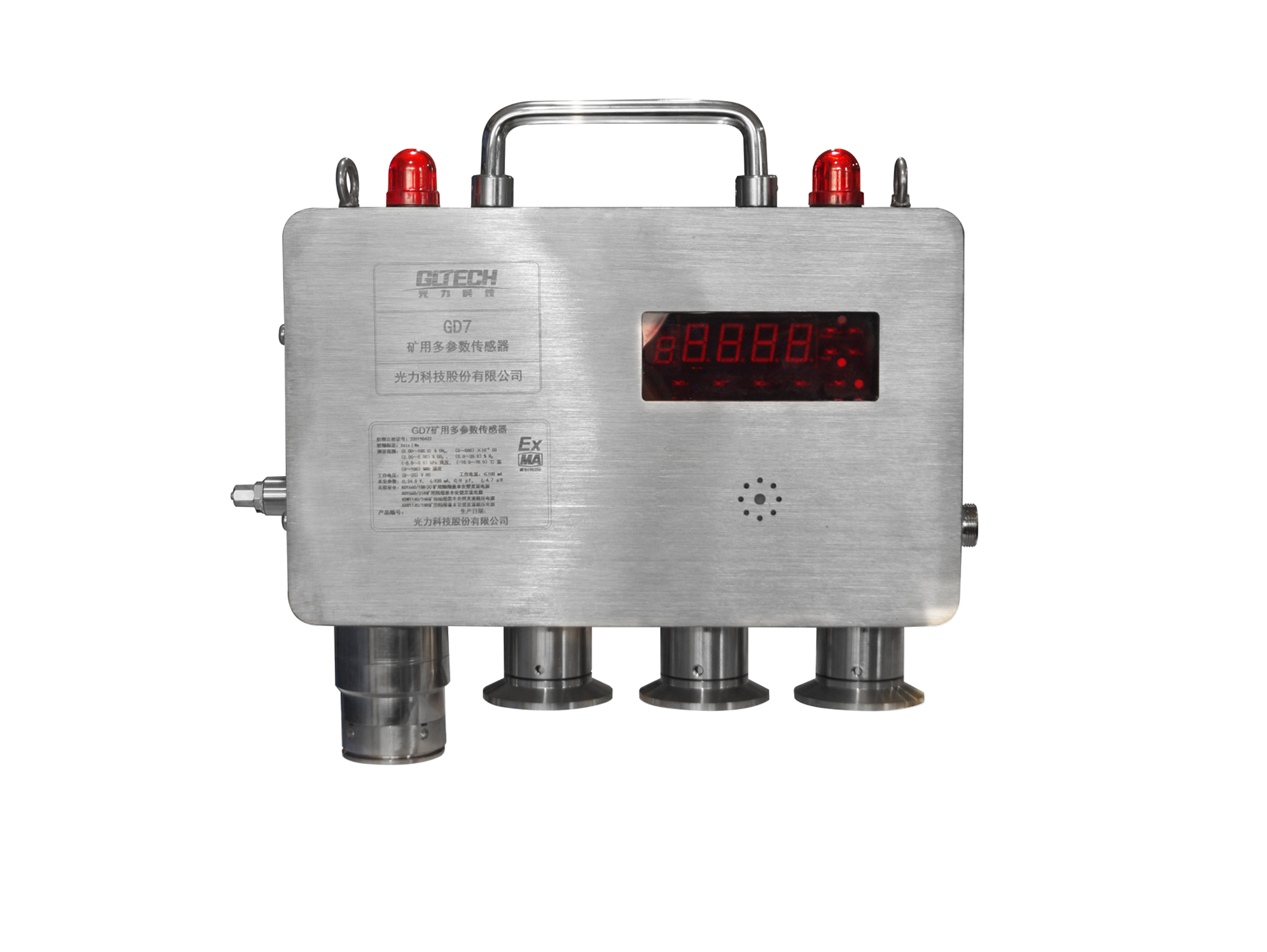

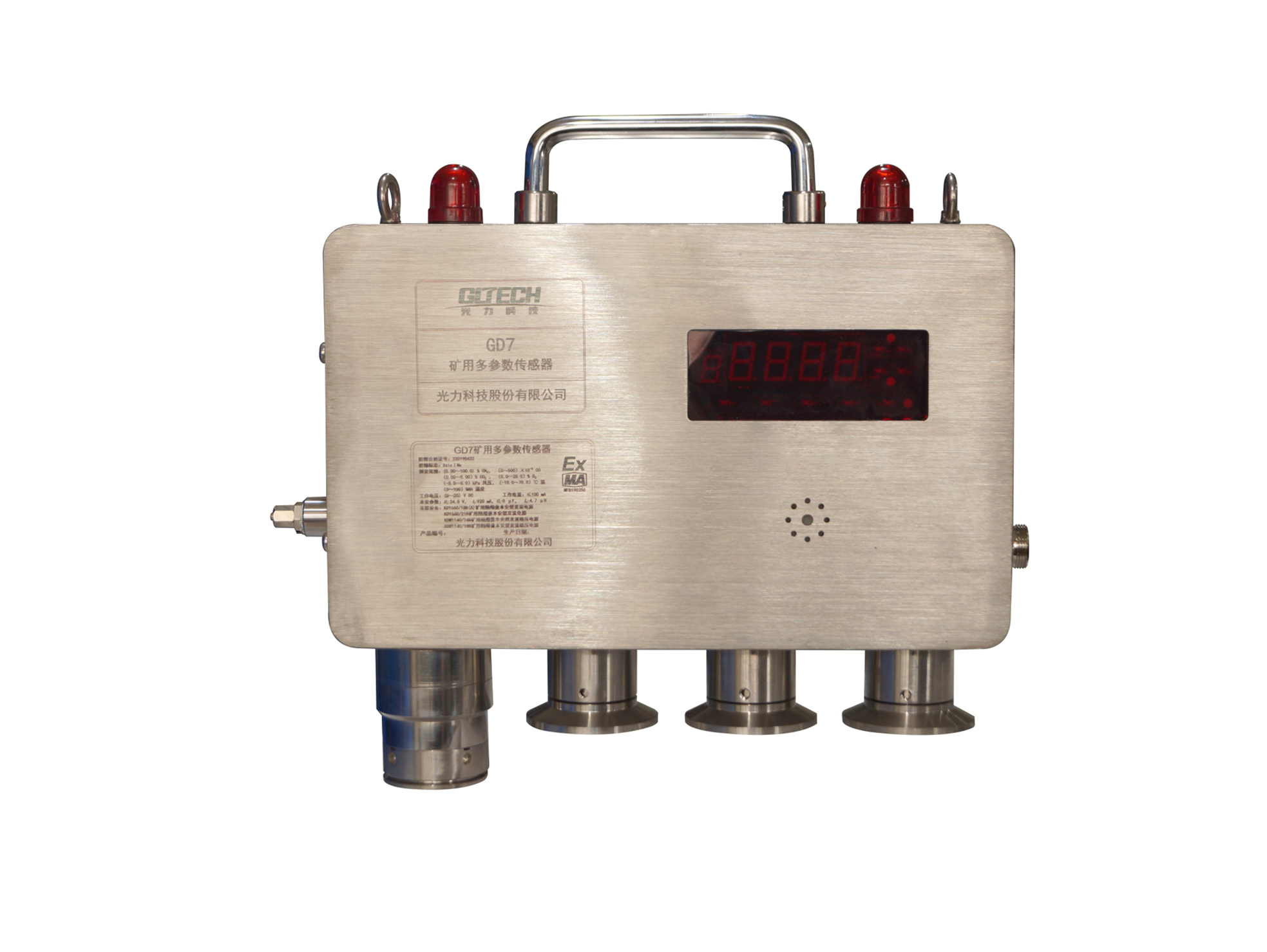

GD7 Intrinsically(Mine) Safe Multiparameter Sensor

Product description

Multi-parameter sensor for mining is mainly used to monitor environmental parameters such as underground gas in coal mines, and can measure up to seven parameters of methane, carbon monoxide, carbon dioxide, oxygen, pressure, humidity, and temperature at the same time. As an intelligent monitoring instrument, the sensor is stable, reliable, and easy to use. Functions such as zero-setting, accuracy adjustment, and alarm threshold setting can all be achieved through remote control, and equipment can be integrated with the coal mine safety monitoring system for gas parameter monitoring.

Product Description

GD7 multi-parameter sensor for mining is mainly used to monitor environmental parameters such as underground gas in coal mines, and can measure up to seven parameters of methane, carbon monoxide, carbon dioxide, oxygen, pressure, humidity, and temperature at the same time. As an intelligent monitoring instrument, the sensor is stable, reliable, and easy to use. Functions such as zero-setting, accuracy adjustment, and alarm threshold setting can all be achieved through remote control, and equipment can be integrated with the coal mine safety monitoring system for gas parameter monitoring.

Feature

  • Modular design, easy for maintenance
  • Individually configurable for each sensor module
  • Audible and visual alarm function
  • Integrated battery for backup power
  • Wireless LAN and hop network supported

Technical Specification

Parameter Range Accuracy
CH4 (0.0~10.0)% ±0.06%
(10.0~100.0)% ±6% of true value
CO (0~500) ppm ±4ppm @ (0~100) ppm
±5% @ (100~500)ppm
TEMP (-10.0~70.0)℃ ±1.0℃
Power rating (9~25)V DC  ≤100mA@18V DC
Backup battery (12~16.8)V DC with 24 hours operation
Transmission distance ≤100m (wireless)
Wired communication protocol RS485
Explosion-proof type Mining intrinsically safe (Ex-mark: Exia I Ma)
