CJZ10J

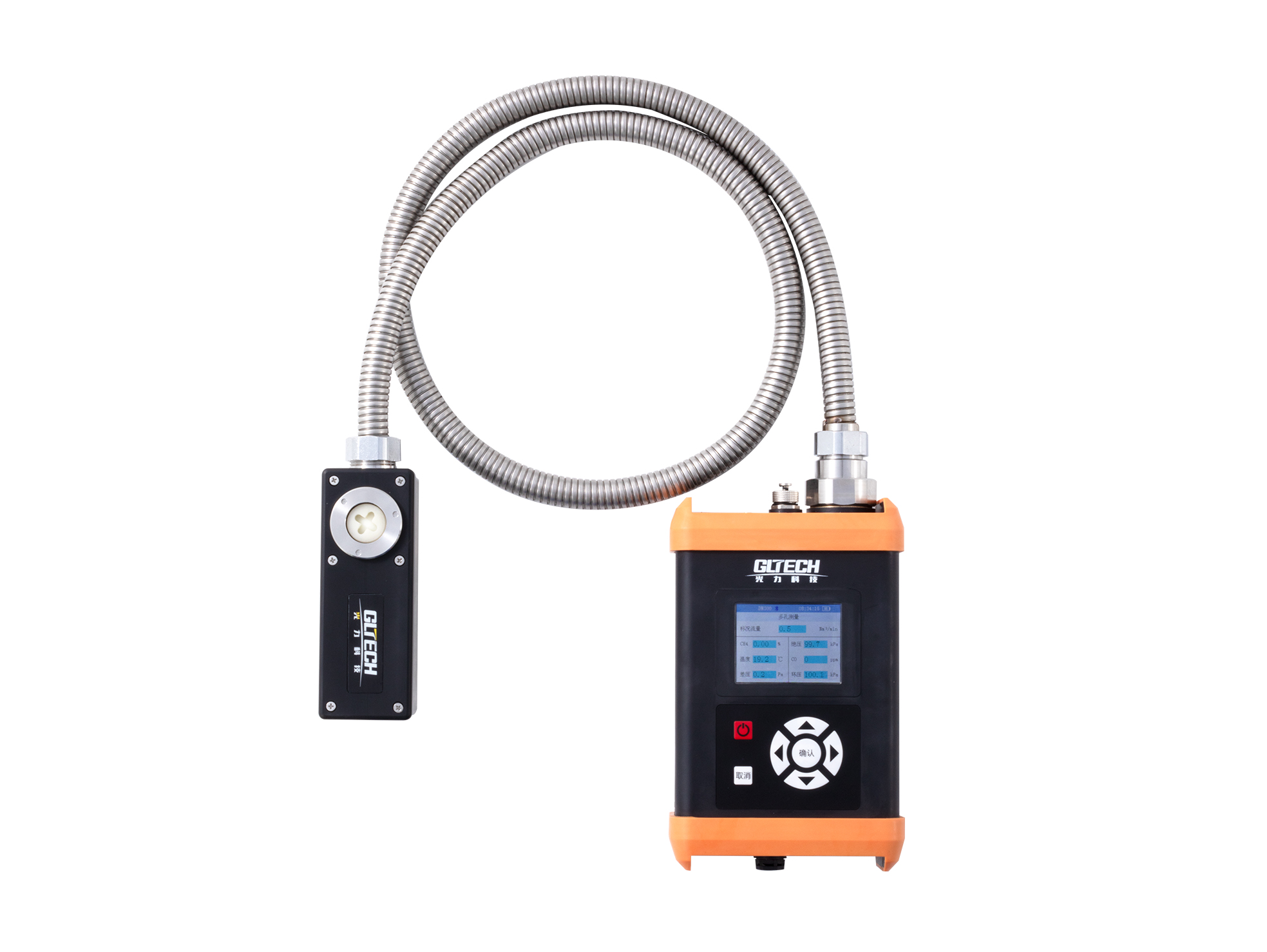

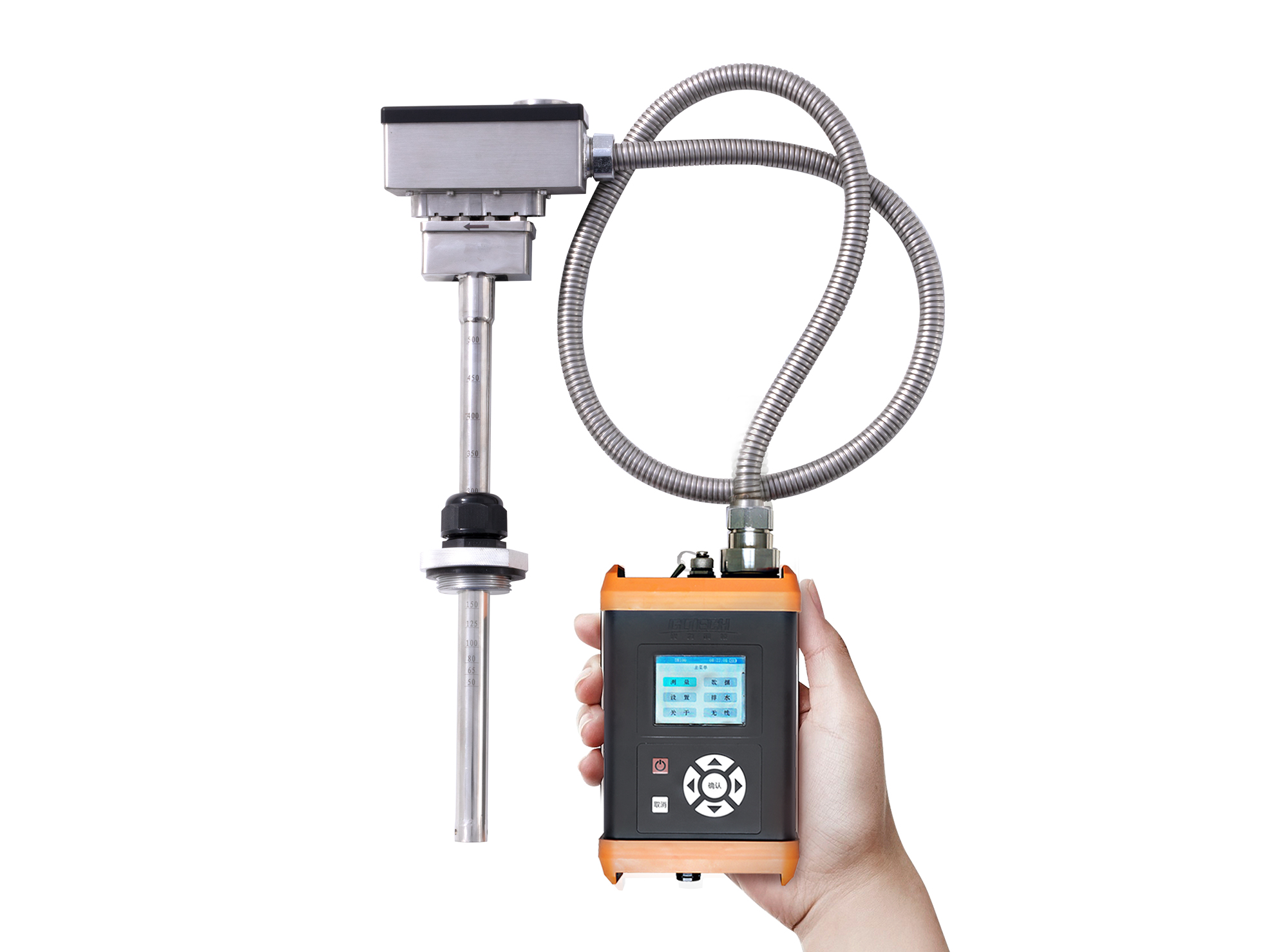

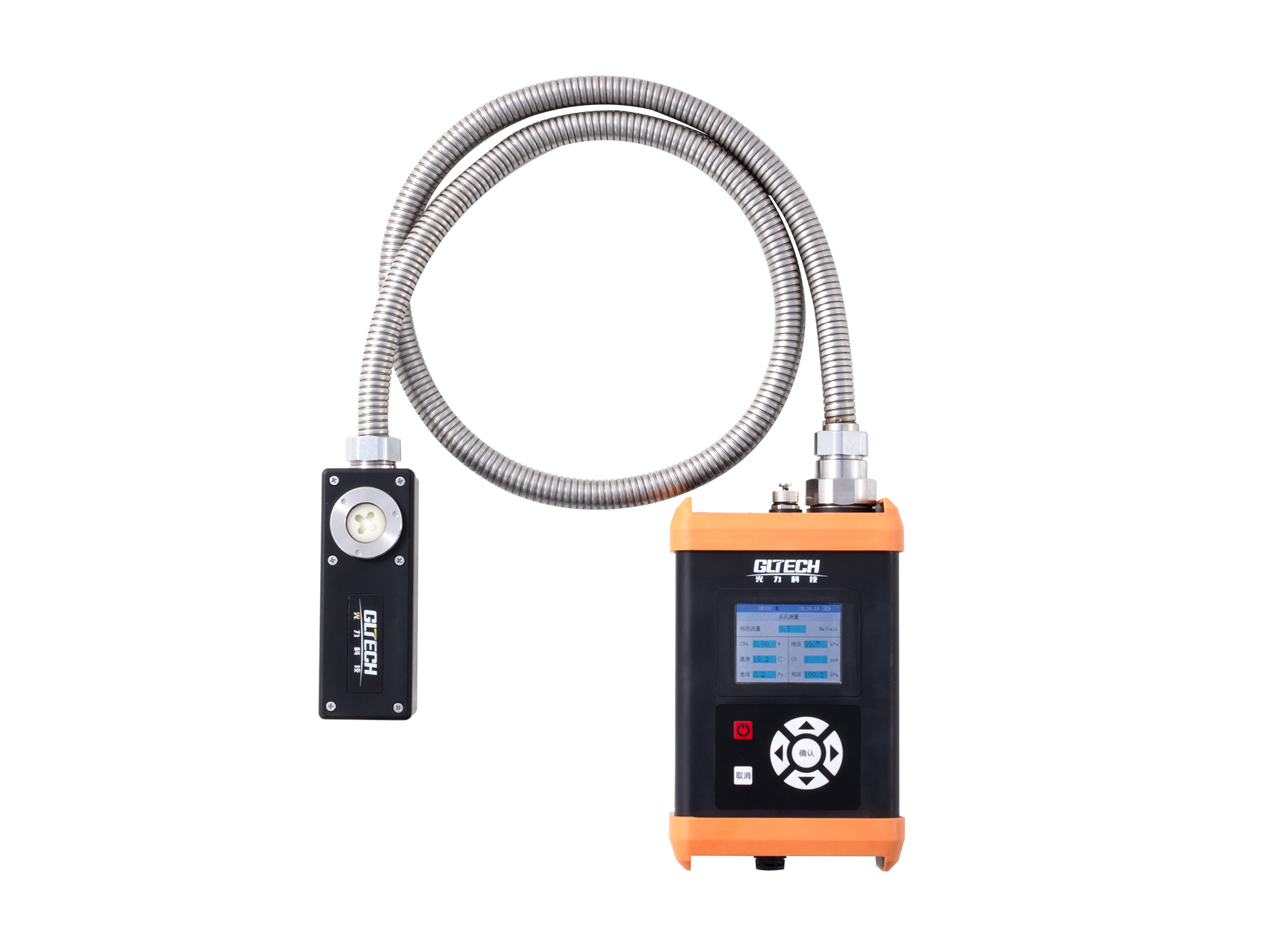

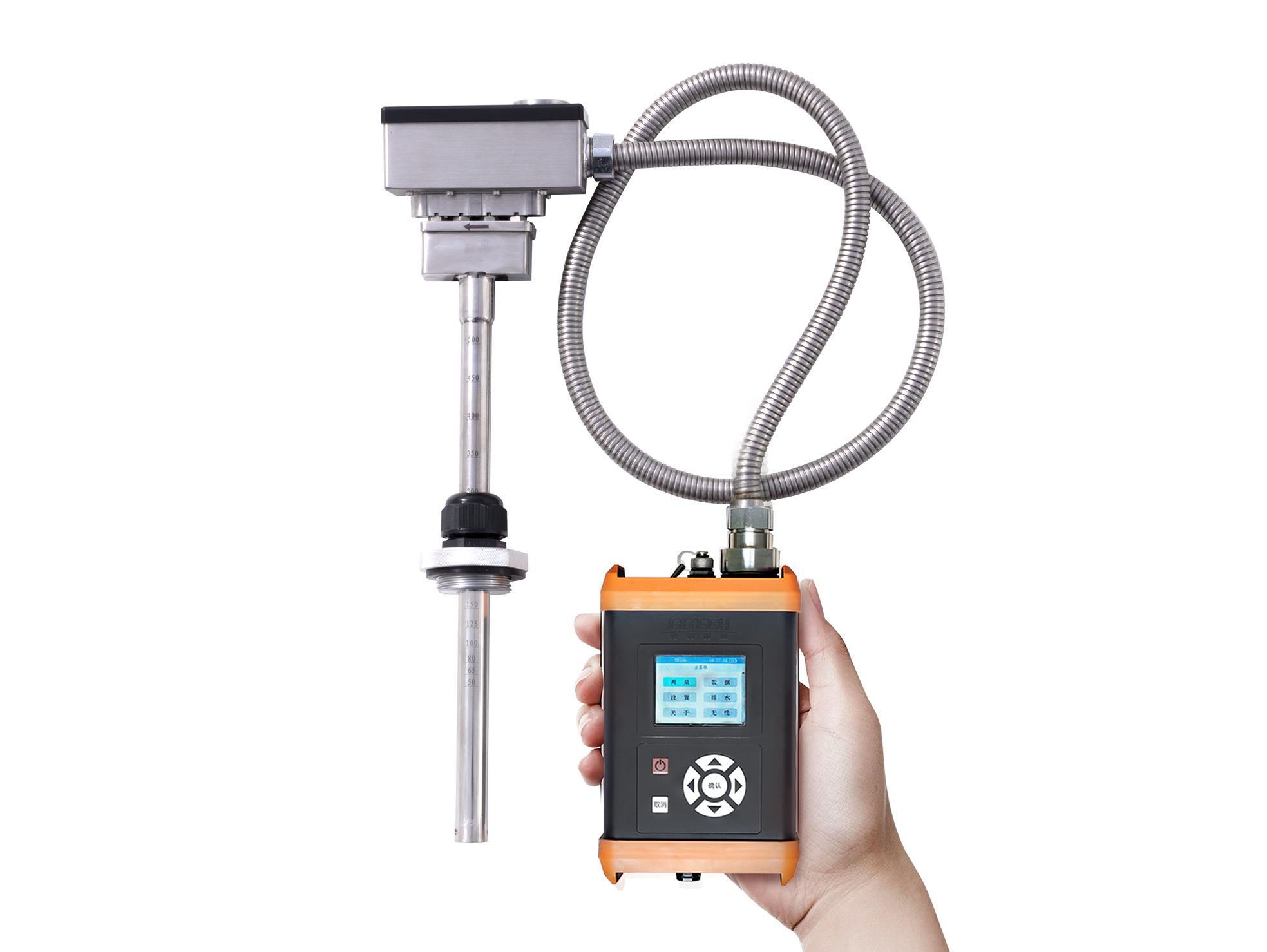

CJZ10J Laser Gas Drainage Comprehensive Parameter Tester

Product description

Laser Gas Drainage Comprehensive Parameter Tester (referred as the tester hereinafter) is a new generation of multi-functional and portable device which can upload information in real-time. It integrated the latest laser gas analysis technology, rapid sampling technology and location reporting technology to meet the needs of periodic measurement during drilling and drainage.

Product description

CJZ7J(A) Laser Gas Drainage Comprehensive Parameter Tester (referred as the tester hereinafter) is a new generation of multi-functional and portable device which can upload information in real-time. It integrated the latest laser gas analysis technology, rapid sampling technology and location reporting technology to meet the needs of periodic measurement during drilling and drainage.

Feature

  • It adopts the laser detection technology to measure the methane concentration quickly and accurately; it has rich functions, and can simultaneously measure up to 10 parameters
  • The sampling interface is flexible and suitable for single hole sampling and draft tube sampling
  • The tester has localization function of devices (for use with the corresponding system)
  • Measurement data can be uploaded wirelessly in real time (for use with the corresponding system)
  • With flexible operation mode, it can be used alone or with an optional intelligent terminal
  • It is suitable for both single hole measurement and gas drainage pipeline measurement

Technical Specifications

CJZ7J(A) CJZ10J
Methane(CH4 %) (0.00~1.00): ±0.05% CH4

>(1.0~100.0): ±5.0% of true value

CO (10-6 CO) (0~100): ±4

>(100~500): ±5% of measured value

>500~2000: ±6% of measured value >500~1000: ±6% of measured value
Flow rate (m3/min) DN50: (0.040~1.600): ±1.5%FS

DN75: (0.090~3.600): ±1.5%FS

DN300: (2.5~100): ±1.5FS

Absolute pressure (kPa) (10.0~100.0): ±1.5%

>(100~200): ±1.5kPa

Temperature (℃) (-10~50): ±1℃
Pressure difference (-250.0~250.0): ±7.5 Pa

(-2500~-250): ±75 Pa

(250~2500): ±75 Pa

Environment pressure(kPa) (50~110): ±0.5kPa
CO2 (%) N/A (0.00~0.50): ±0.10

(0.50~5.00): ±(0.05+5% of true value)

O2 (%) N/A (0~5.0): ±0.5% O2

(5.0~25.0): ±3%FS
