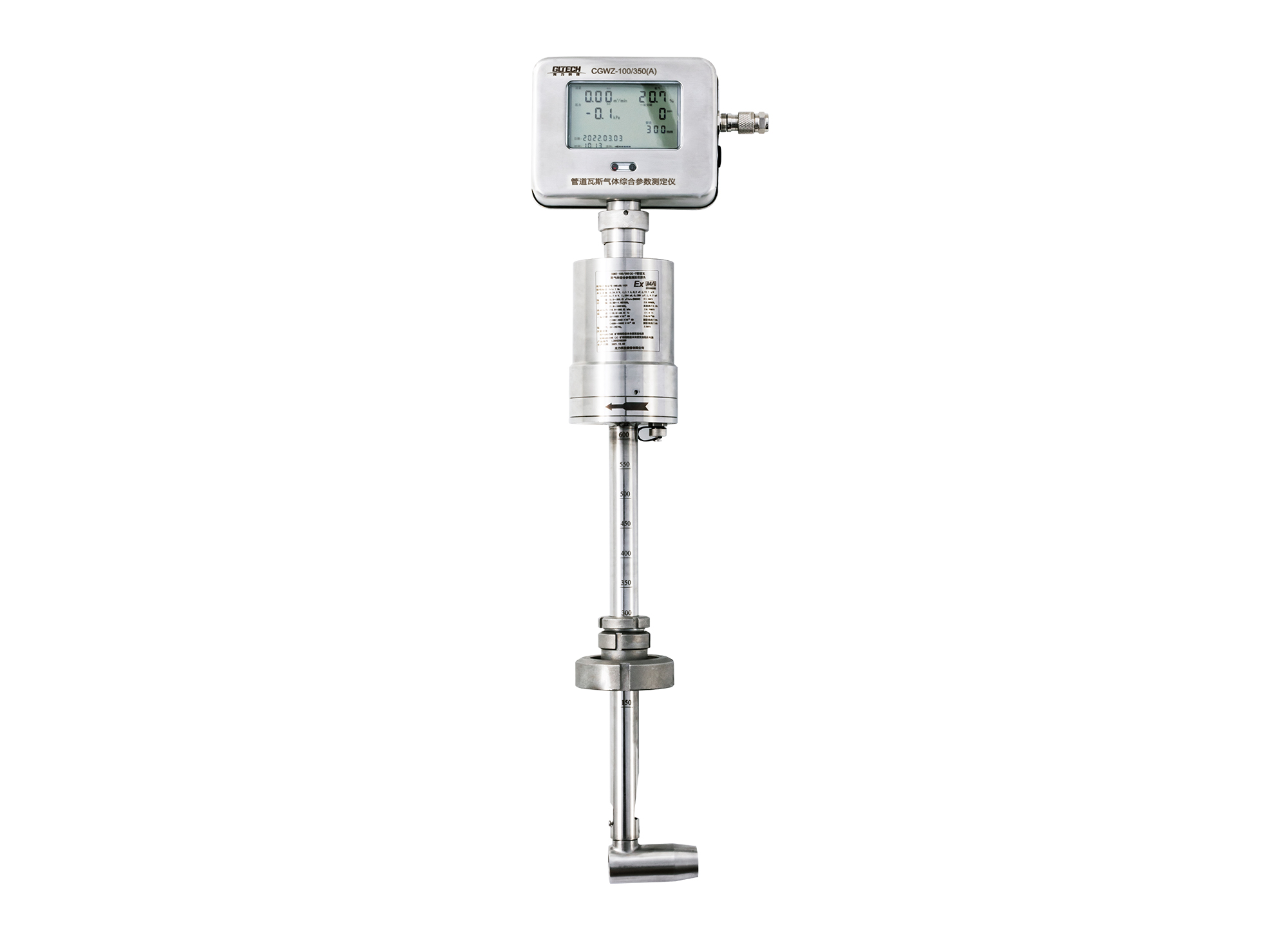

CGWZ-100/350/CGWZ-100/350(A)

Pipeline Gas Comprehensive Parameter Tester

Product Description

A fixed multi-parameter gas pipeline measuring instrument with insertion mechanism. The insertion depth can be adjusted to suit different pipeline size.

Product Description

CGWZ-100/350|CGWZ-100/350(A) is a fixed multi-parameter gas pipeline measuring instrument with insertion mechanism. The insertion depth can be adjusted to suit different pipeline size.

Feature

  • Simultaneously measurements of flow rate, pressure, temperature and concentration of methane, carbon monoxide, and oxygen.
  • Full range measurement as low as 0.5 m/s.
  • Insertion installation mechanism creates no flow resistance and adjustable insertion depth suitable for any pipe size.
  • Easy calibration.
  • Real-time data uploading with wireless transmission.
  • Insertion Installation Mechanism with Integrated Structure.

Technical parameter

CGWZ-100/350 CGWZ-100/350(A)
CH4(%) 0.00~1.00: ±0.05

>1.0~100.0 ±5.0%

Flow rate (m3/min) (0.0~350.0) m3/min ±1.5% FS
Absolute pressure (kPa) (10.0~200.0) kPa ±0.75% FS
Temperature (℃) -10~60: ±1 ℃
CO

(10-6)

\ 0~100: ±4

100~500: ±5%

500~1000: ±6%

O2 (%) \ (0.0~25.0) % O2: ±3% FS
