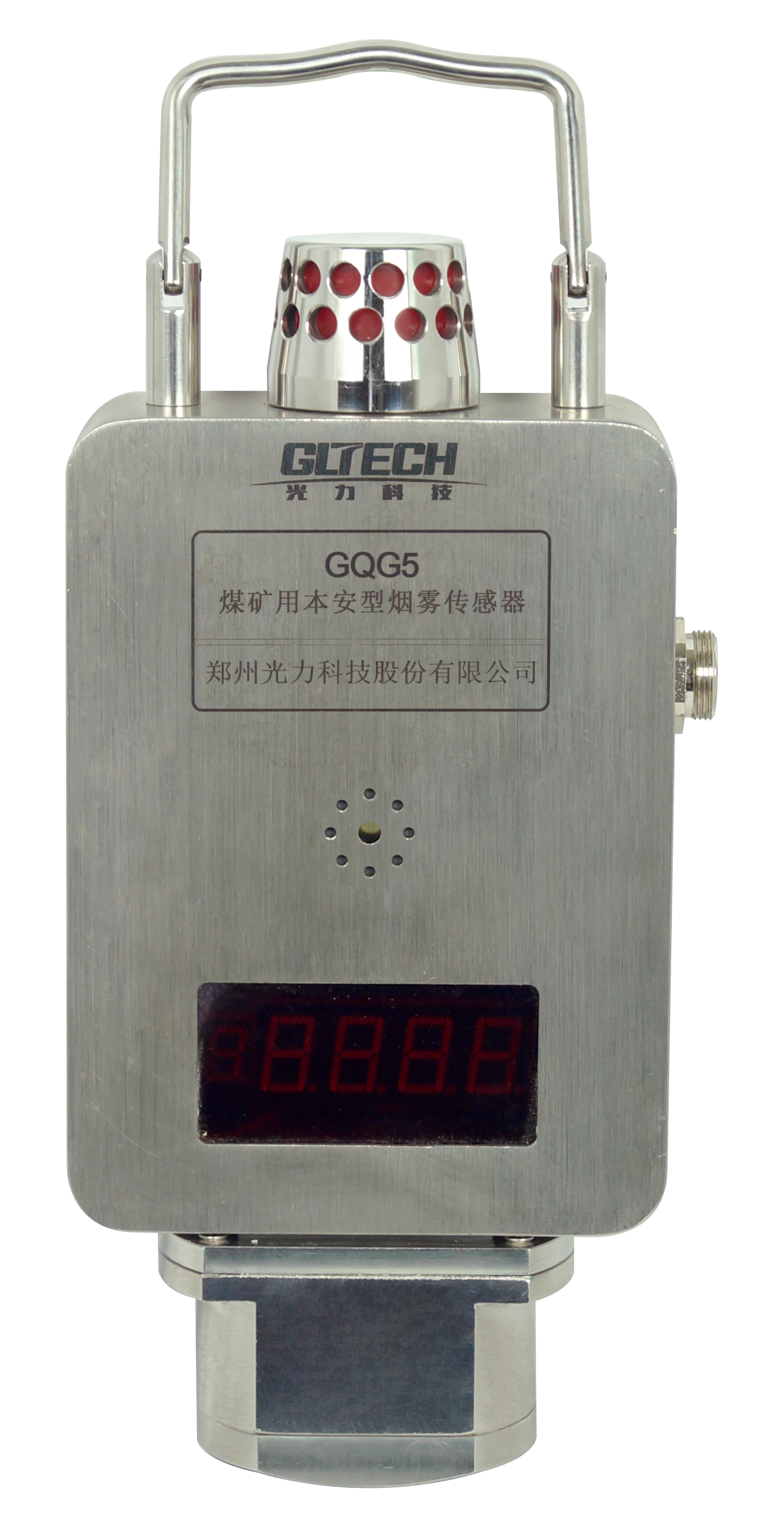

The GQG5 Mining Smoke Sensor is designed for real-time smoke detection in underground coal mine environments, particularly for monitoring potential fire hazards in coal transportation systems, rubber/plastic conveyor belts, where combustion may occur.
The sensor detects smoke concentration changes and provides timely audible and visual alarms when abnormal conditions exceed preset thresholds, helping improve early fire detection capability and enhance underground mine safety management.
Key Features
Remote Calibration Function
Supports remote calibration and parameter adjustment, reducing maintenance workload and improving operational efficiency.
Status Display
Equipped with a local status display function, allowing operators to quickly check sensor operating conditions.
Excellent Environmental Adaptability
Designed for long-term stable operation in harsh underground environments, including high humidity and dusty conditions.
Audible and Visual Alarm
Features a high-brightness 5-digit red LED display with integrated sound and light alarm functions for immediate warning indication.
Applications
Technical Specifications
| Parameter | Specification |
| Rated Operating Voltage | 18 VDC |
| Operating Voltage Range | 9–25 VDC |
| Sensitivity and Response Time | Smoke concentration change ≥5%/m; response time ≤20 s |
| Communication Interface | RS485 |
| Transmission Rate | 2400 bps |
| Maximum Transmission Distance | 3 km |
| Explosion Protection | Ex ia I Ma |
