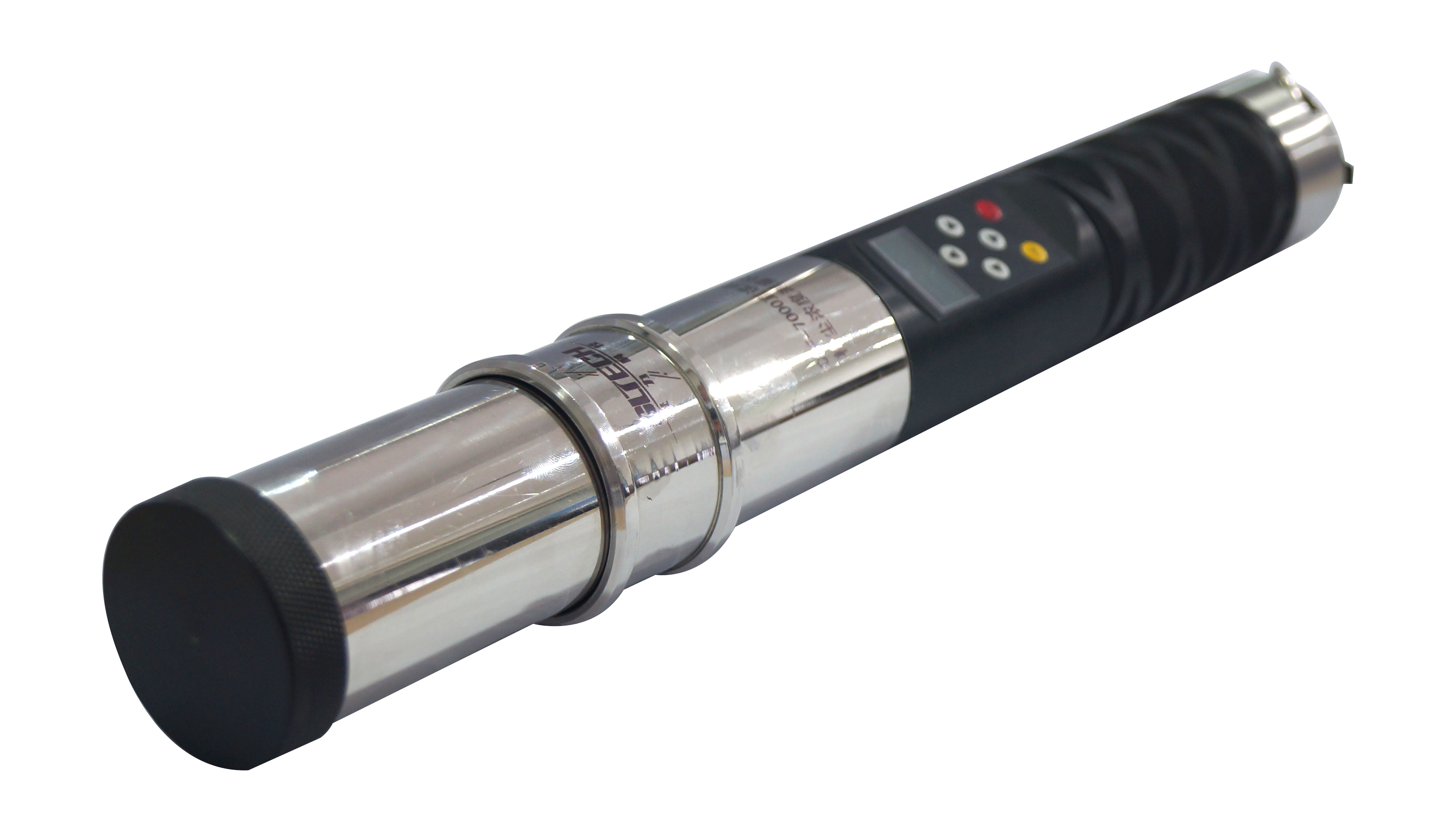

The CCF-7000 Direct-Reading Dust Concentration Measuring Instrument is a portable device designed for rapid and real-time measurement of dust concentration in mining and industrial environments. Based on advanced laser scattering measurement technology, the instrument eliminates the need for traditional filter membrane sampling and laboratory analysis, providing fast, accurate, and convenient dust monitoring.
With advantages including direct measurement, high efficiency, and safe operation, the CCF-7000 is widely used for dust hazard assessment, occupational health monitoring, and environmental safety inspection in underground coal mines and other dusty workplaces.
Key Features
Laser Precision Measurement
Adopts advanced laser optical measurement technology to provide accurate, stable, and reliable dust concentration measurement without filter sampling.
Fast Direct Measurement
Enables real-time dust concentration measurement with no membrane replacement or sampling preparation. Measurement can be completed within 30 seconds.
Multi-Functional Operation
Supports zero calibration and range calibration functions, providing convenient operation and improved measurement accuracy.
Large Data Storage Capacity
Stores up to 1,000 measurement records, with data transmission support for computer-based management and analysis.
Portable and Lightweight Design
Compact structure with a weight of less than 1 kg, making it convenient for handheld inspection and field measurement.
Applications
Technical Specifications
| Parameter | Specification |
| Measuring Range | 0.01–7000 mg/m³ |
| Measurement Principle | Laser Scattering Method |
| Display | 128 × 61 OLED Display |
| Data Storage | Up to 1,000 records |
| Power Supply | Built-in rechargeable battery |
| Operating Time | Up to 12 hours |
| Weight | ≤1 kg |
| Protection Rating | IP65 |
| Explosion Protection | Ex ia I Ma |
