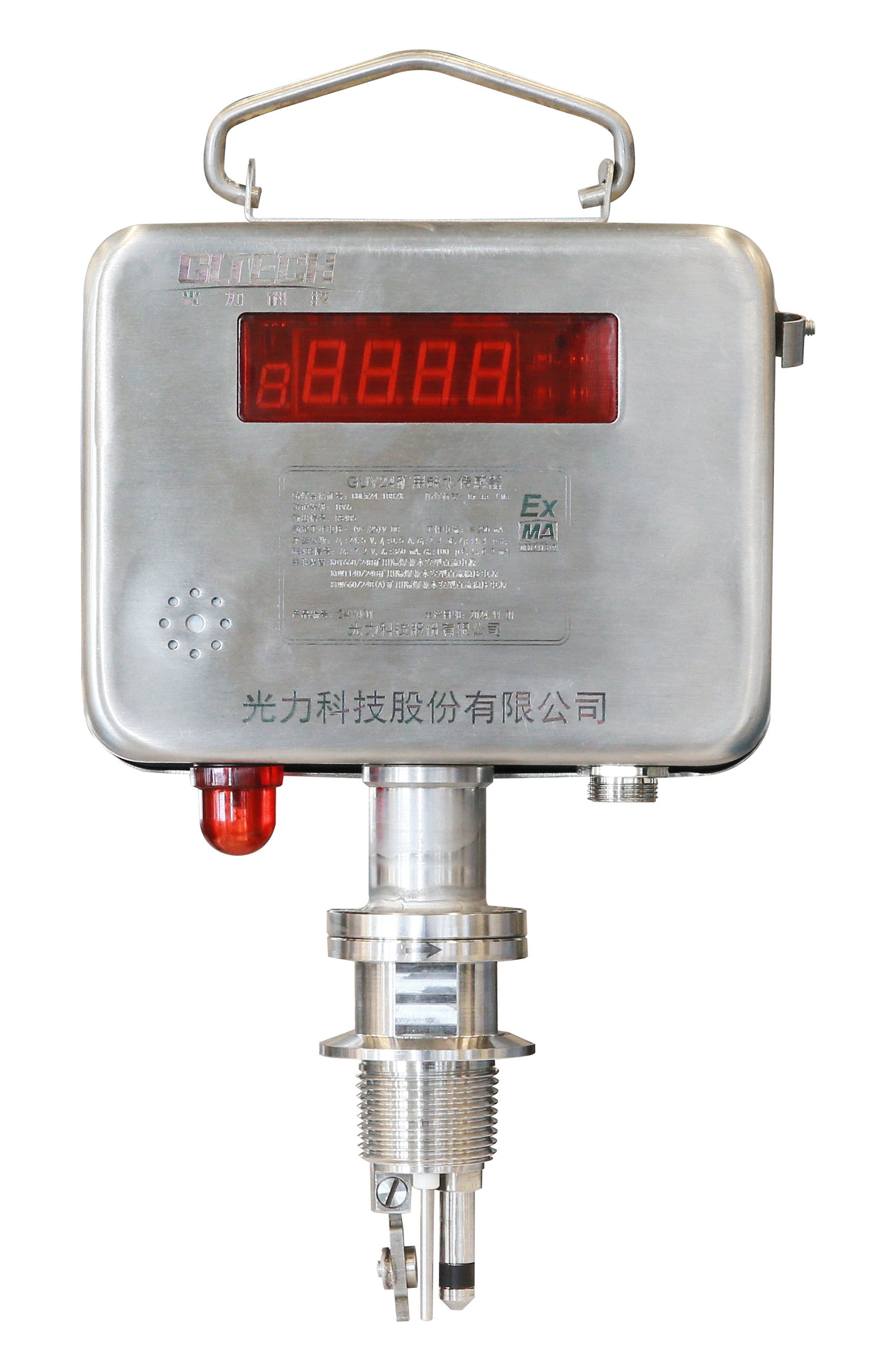

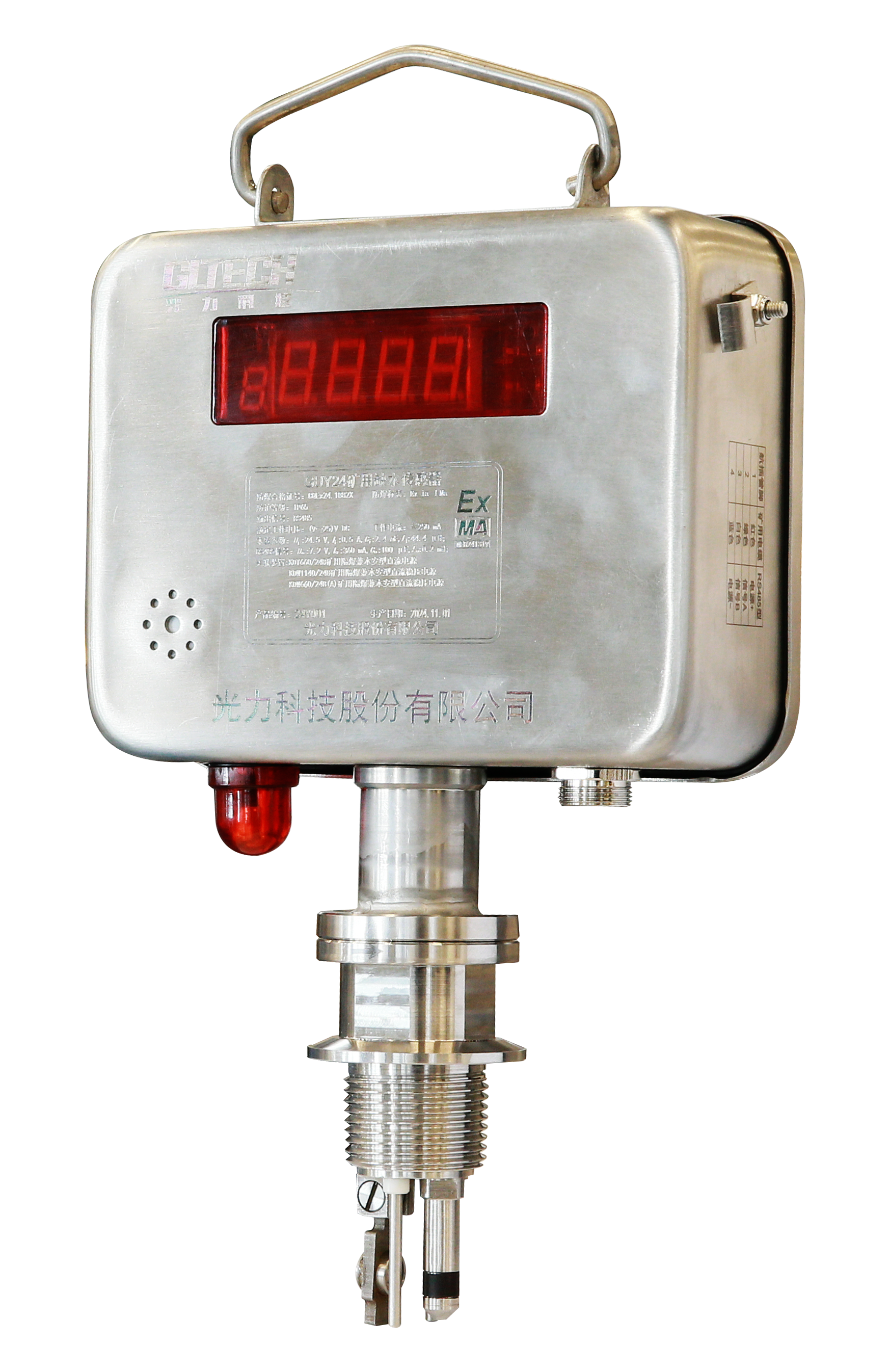

The GUY24 Mining Water Cut Sensor is designed for monitoring water supply status in various water pumps and water supply of gas drainage pumps. The sensor detects water presence or absence in pipelines and provides real-time status information to ensure reliable operation of water supply systems.
With local status display, RS485 communication, and audible and visual alarm functions, the GUY24 enables effective monitoring and early warning for abnormal water supply conditions in underground mining environments.
Key Features
RS485 Signal Communication
Converts water supply status into RS485 digital signals for integration with underground monitoring and control systems.
Local Status Display
Provides real-time local indication of water supply status through a digital display:
Audible and Visual Alarm
Provides sound and light alarm functions to alert operators when water supply interruption or abnormal conditions occur.
Reliable Environmental Protection
Features IP65 protection rating, providing excellent resistance against dust, moisture, and harsh underground operating environments.
Applications
Technical Specifications
| Parameter | Specification |
| Status Display | Digital display (1: water available; 0: water shortage) |
| Response Time | ≤10 s |
| Rated Operating Voltage | 24 VDC |
| Operating Voltage Range | 9–25 VDC |
| Communication Interface | RS485 |
| Transmission Channels | 1 channel |
| Maximum Transmission Distance | ≤6 km |
| Alarm Function | Audible and visual alarm |
| Protection Rating | IP65 |
