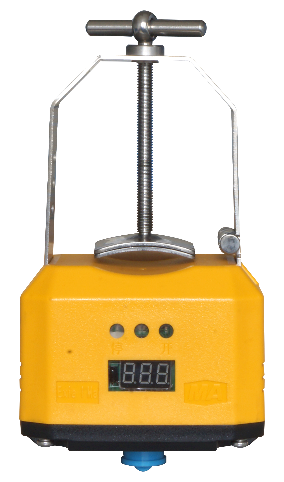

The GKT3L(B) Mining Equipment Operation Status Sensor is designed for real-time monitoring of the operating status of various underground coal mine electrical and mechanical equipment, including mining machines, conveyors, pumps, and fans.
The sensor detects equipment operating conditions and converts status signals into standard communication signals for transmission to mine monitoring systems. Combined with industrial Ethernet communication technology, it enables centralized monitoring and management of equipment operation status, improving mine automation and intelligent operation capabilities.
Key Features
Equipment Operation Status Detection
Provides real-time monitoring and display of equipment operating conditions, enabling operators to quickly identify equipment running status.
Remote Parameter Configuration
Supports remote calibration and parameter configuration for convenient system setup and maintenance.
Parameter Storage Function
Built-in non-volatile memory stores configuration parameters, ensuring reliable operation after power recovery.
Intrinsically Safe Signal Output
The sensor output interface adopts an intrinsically safe design, ensuring safe operation in hazardous underground mining environments.
Applications
Technical Specifications
| Parameter | Specification |
| Rated Operating Voltage | 18 VDC |
| Operating Voltage Range | 9–25 VDC |
| Sensor Operating Current | 3 A |
| Maximum tolerance allowance | ≤10% |
| Communication Interface | RS485 Digital Signal |
| Transmission Rate | 2400 bps (configurable) |
| Maximum Transmission Distance | ≤6 km |
| Response Time | ≤1 s |
| Status Indication | Digital tube display: ON/OFF status |
| Explosion Protection | Ex ia I Ma |
