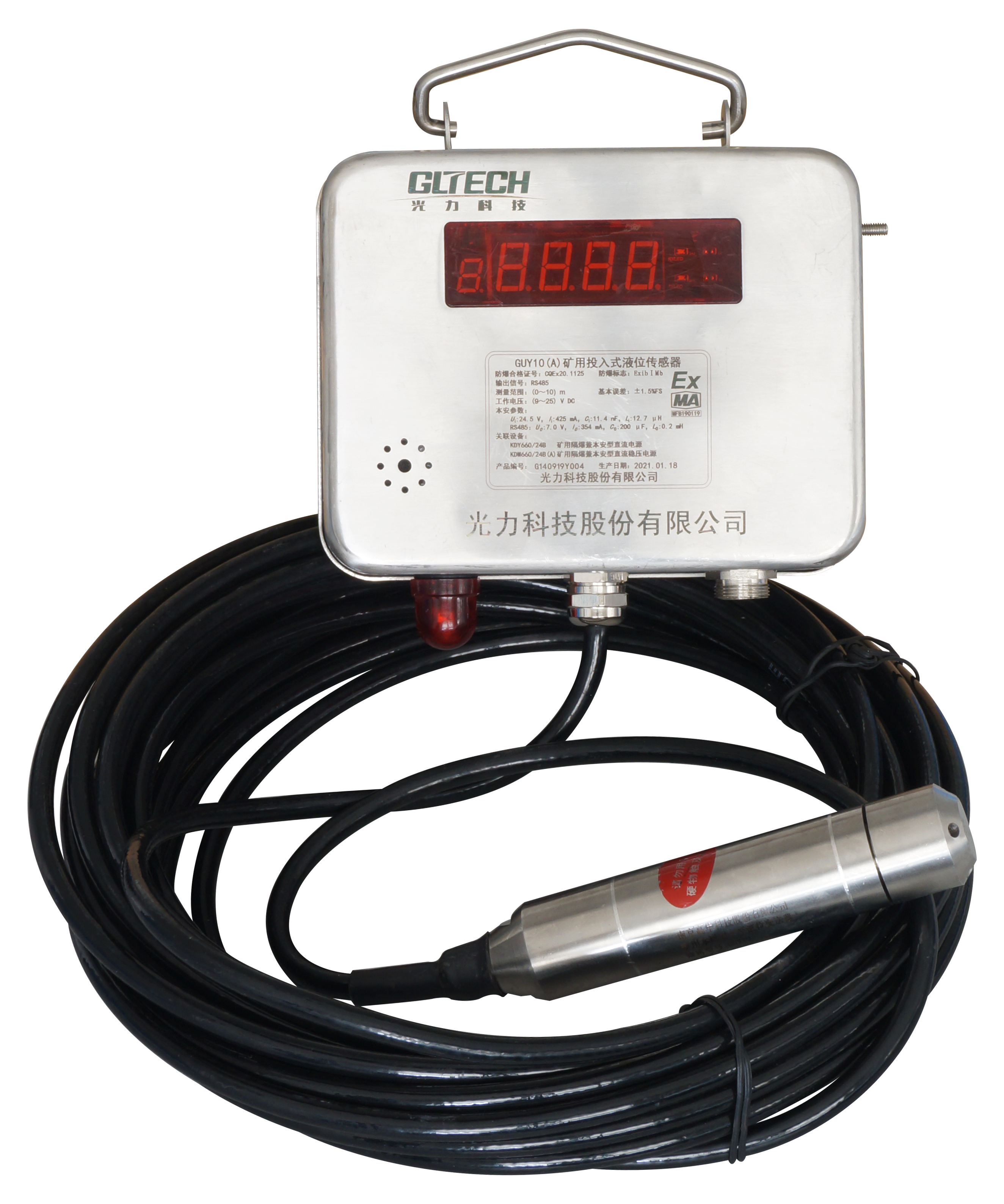

The GUY10(A) Mining Submersible Liquid Level Sensor is designed for real-time monitoring of water level in underground coal mine applications, such as mine sump monitoring and water accumulation detection areas.
The sensor measures liquid level through a submersible probe and provides local digital display of the measured value. It supports RS485 communication for data transmission to mine monitoring systems, enabling centralized monitoring and early warning of underground water level changes.
Key Features
Local Digital Display
Provides real-time display of measured liquid level values for convenient on-site inspection and operation.
Audible and Visual Alarm
Integrated sound and light alarm functions provide timely warnings when abnormal liquid level conditions occur.
Excellent Environmental Adaptability
Features IP65 protection rating, providing reliable operation against dust, moisture, and harsh underground environmental conditions.
High-Performance Liquid Level Probe
Uses a high-quality liquid level measurement sensor with long service life, stable performance, and extended calibration intervals.
RS485 Communication
Supports RS485 digital communication for seamless integration with underground coal mine monitoring and control systems.
Applications
Technical Specifications
| Parameter | Specification |
| Measuring Range | 0.00–10.00 m |
| Rated Operating Voltage | 18 VDC |
| Operating Voltage Range | 9–25 VDC |
| Communication Interface | RS485 |
| Transmission Channels | 1 channel |
| Transmission Rate | 2400 bps |
| Maximum Transmission Distance | ≤6 km |
| Alarm Function | Audible and visual alarm |
| Protection Rating | IP65 |
