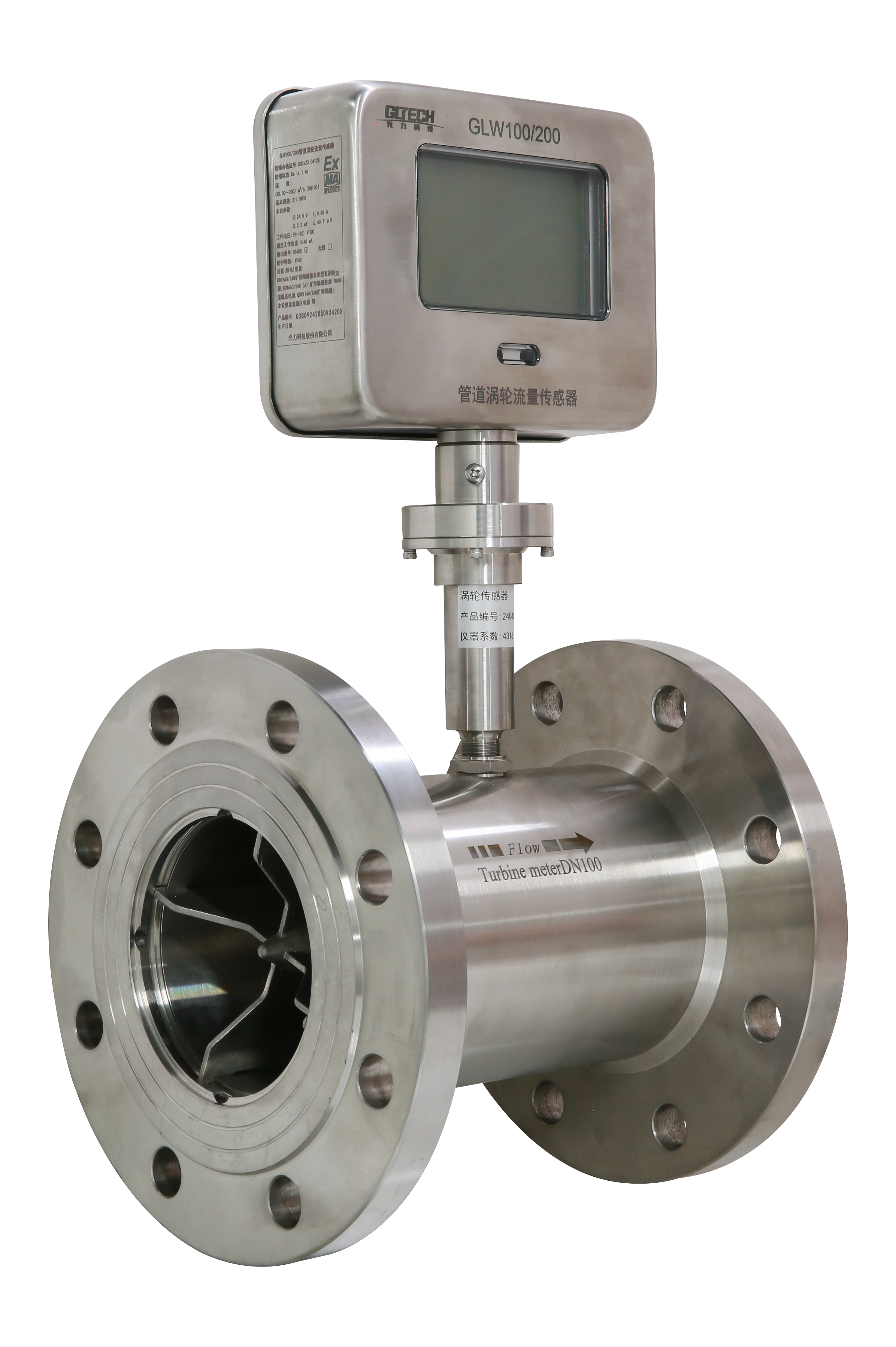

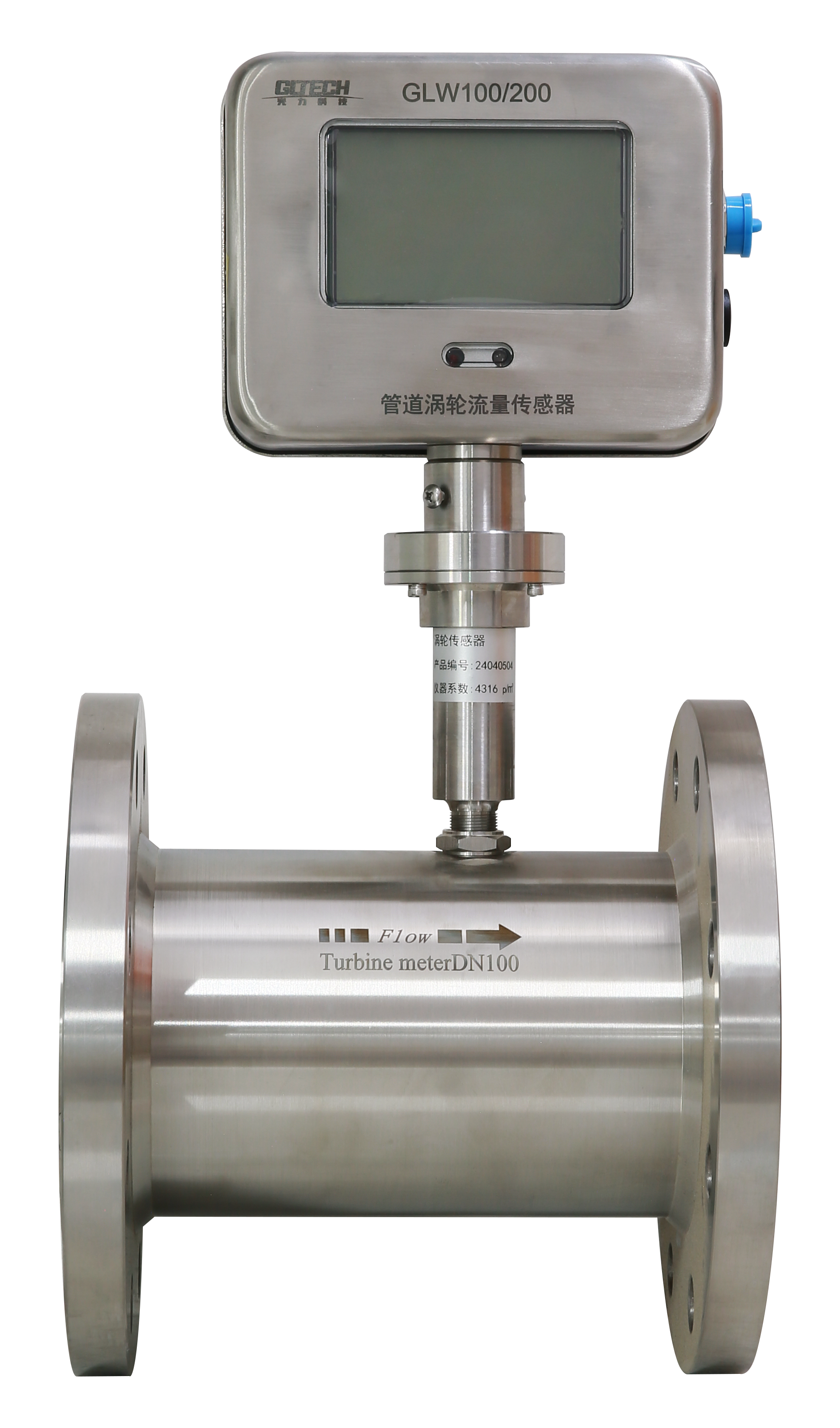

The GLW100/200 & GLW150/400 Pipeline Turbine Flow Sensor is designed for real-time water flow measurement in underground coal mine pipeline systems. The sensor accurately measures and displays instantaneous flow rate, daily accumulated flow, and total cumulative flow, providing reliable data support for mine water management and monitoring applications.
With high measurement accuracy, flexible wired and wireless communication options, and strong pressure resistance, the sensor is suitable for various underground pipeline flow monitoring scenarios.
Key Features
High-Precision Flow Measurement
Provides accurate flow measurement with precision up to Class 1, enabling reliable monitoring of underground pipeline water flow.
Flexible Communication Options
Supports both wired and wireless data transmission modes, allowing convenient integration with different mine monitoring systems.
High Pressure Resistance
Designed with robust mechanical structure, supporting pipeline pressure ratings up to 1.6 MPa for reliable operation under demanding conditions.
Self-Diagnostic Function
Equipped with intelligent self-diagnosis capability to improve equipment reliability and simplify maintenance.
Applications
Technical Specifications
| Parameter | GLW100/200 | GLW150/400 |
| Flow Range | 20.00–200.00 m³/h | 40.00–400.00 m³/h |
| Measurement Accuracy | Class 1 | Class 1 |
| Maximum Working Pressure | ≤1.6 MPa | ≤1.6 MPa |
| Wired Transmission Distance | ≤6 km | ≤6 km |
| Wireless Transmission Distance | ≤200 m | ≤200 m |
| Communication Mode | Wired / Wireless |
